# bedpull
[](https://crates.io/crates/bedpull)
[](https://crates.io/crates/bedpull)
[](https://docs.rs/bedpull)
[](https://github.com/Psy-Fer/bedpull/actions/workflows/ci.yml)
[](LICENSE)
Extract sequences from BAM, CRAM, or PAF/FASTA files using BED coordinates. A tool for sequence extraction that handles structural variants, insertions, and complex alignments.
## Overview
`bedpull` extracts sequences from alignment files (BAM/CRAM) or assemblies (FASTA via PAF alignments) based on BED region coordinates. Unlike traditional coordinate lifting tools like liftOver, bedpull uses CIGAR-aware extraction to correctly handle:
- Large insertions and deletions
- Structural variants
- Complex rearrangements
- Phased haplotype assemblies (`--hap_split`)
- Large SVs split across multiple PAF alignment records (`--stitch_records`)
## Installation
### Installing Rust if you don't have it yet
```
curl --proto '=https' --tlsv1.2 -sSf https://sh.rustup.rs | sh -s -- -y
source $HOME/.cargo/env
```
### From source
```bash
git clone https://github.com/Psy-Fer/bedpull
cd bedpull
cargo build --release
./target/release/bedpull --help
```
Add `/<top dir>/bedpull/target/release/` to your `$PATH` for easy use of the `bedpull` binary
### building a static binary if you need to run on some other linux system like NCI
```
rustup target add x86_64-unknown-linux-musl
RUSTFLAGS='-C link-arg=-s'
cargo build --release --target x86_64-unknown-linux-musl
./target/x86_64-unknown-linux-musl/release/bedpull --help
```
You can then copy that binary across and use it.
### Requirements
- Rust 1.85 or higher (edition 2024)
- BAM/CRAM files must be coordinate-sorted (bedpull auto-builds a missing `.bai`/`.crai` index)
- FASTA files used with `--reference`/`--query_ref` get a missing `.fai` index auto-built too
## Usage
### Extract from BAM (aligned reads)
```bash
bedpull --bam alignments.bam \
--bed regions.bed \
--output sequences.fasta
```
### Extract from CRAM (aligned reads)
```bash
bedpull --cram alignments.cram \
--reference reference.fasta \
--bed regions.bed \
--output sequences.fasta
```
`--reference` is only required for reference-compressed CRAMs; CRAMs with embedded sequences don't need it.
### Extract from FASTA via PAF alignment
```bash
bedpull --paf assembly_to_reference.paf \
--query_ref assembly.fasta \
--bed regions.bed \
--output sequences.fasta
```
### Options
`bedpull --help` always reflects the current flag set; the full reference (with
defaults, mode restrictions, and validation rules) is in
[`docs/src/cli-reference.md`](docs/src/cli-reference.md). The most commonly used flags:
| Flag | Mode | Description |
|------|------|-------------|
| `-b, --bam <FILE>` | BAM | Coordinate-sorted BAM file (index auto-built if missing) |
| `--cram <FILE>` | CRAM | CRAM file (index auto-built if missing) |
| `-f, --reference <FILE>` | CRAM | Reference FASTA for reference-compressed CRAMs |
| `--paf <FILE>` | PAF | PAF alignment file with a `cg:Z:` CIGAR tag |
| `--query_ref <FILE>` | PAF | Query FASTA to extract from (required with `--paf`) |
| `-r, --bed <FILE>` | all | BED file of target regions (required) |
| `-o, --output <FILE>` | all | Output file; `-` for stdout (default) |
| `--fastq` | BAM, CRAM | Write FASTQ instead of FASTA |
| `--min_mapq <N>` | BAM, CRAM | Minimum mapping quality (`0` = no filter) |
| `--partial` / `--min_partial_coverage <F>` | BAM, CRAM | Include partially-overlapping reads / minimum coverage fraction |
| `--flanks <N>` / `--lflank <N>` / `--rflank <N>` | all | Expand the extraction window before the CIGAR walk |
| `--hap_split` | BAM, CRAM, PAF | Split output into per-haplotype files by `HP`/`hp:i:` tag |
| `--dedup` | all | Emit each read/contig only once across all BED regions |
| `--stitch_records` / `--max_stitch_gap <N>` | PAF | Stitch a region across multiple chained PAF records when no single record spans it |
| `--bed_out <FILE>` | PAF | Write lifted-over query coordinates as BED6 |
| `--unmapped <FILE>` | all | Write regions that produced no output, with reasons |
| `--debug` | all | Verbose per-region/per-read diagnostics |
| `-h, --help` / `-V, --version` | - | Print help / version |
## Use Cases
### STR/Tandem Repeat Genotyping
Extract repeat regions from phased assemblies to create ground truth genotypes for benchmarking:
```bash
# Extract STR loci from HG002 paternal haplotype
bedpull --paf hg002pat_to_hs1.paf \
--query_ref hg002_paternal.fasta \
--bed clinical_str_sites.bed \
--output hg002_str_sequences.fasta
```
### Structural Variant Analysis
Correctly extract sequences spanning large insertions or deletions:

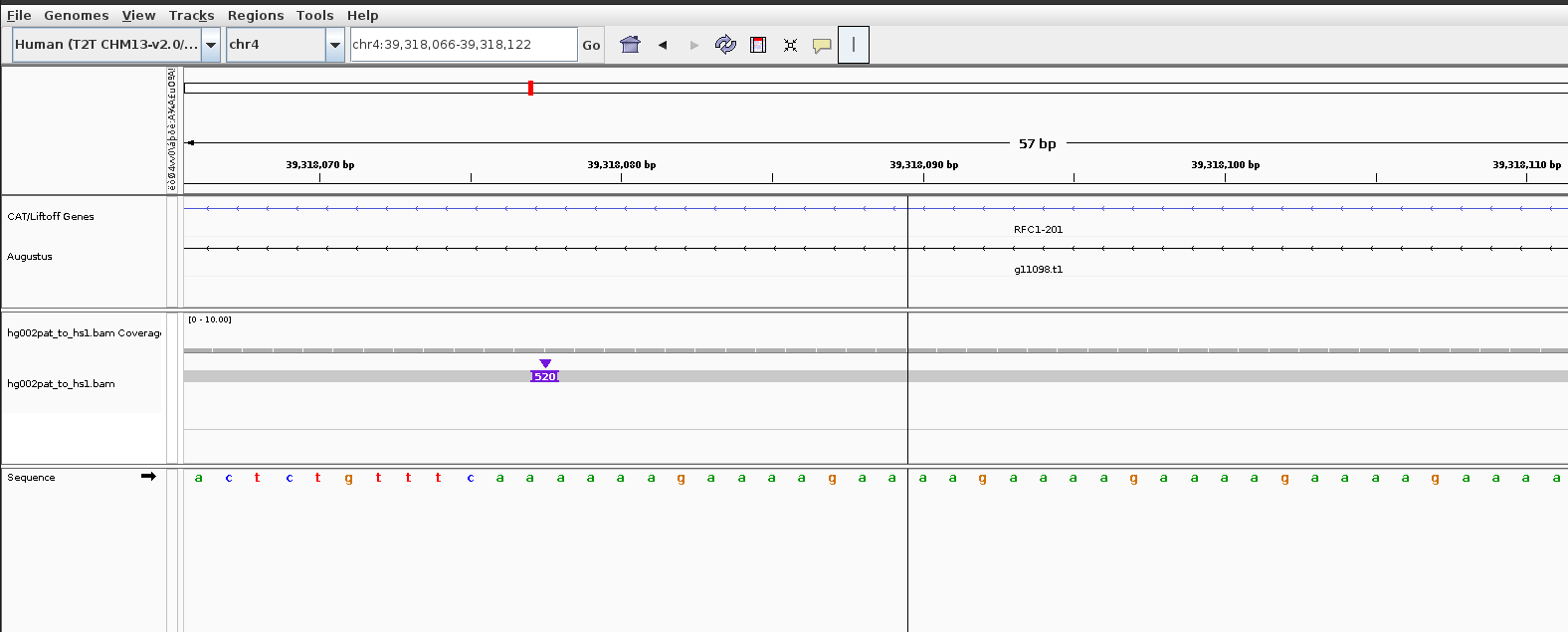

Example: RFC1 locus with 520bp insertion
Using liftover to get regions
```
liftOver ./rfc1.bed hg002pat_to_hs1.chain hg002_paternal_regions_rfc1.bed unmapped_pat_rfc1.bed
```
Results:
```
Reference (hs1): chr4:39318077-39318136 (59 bp)
HG002 paternal (liftover): chr4_PATERNAL:39438551-39438610 (59bp)
HG002 paternal (bedpull): chr4_PATERNAL:39438031-39438610 (579 bp)
Insertion captured by bedpull: 520 bp
```
liftover misses the 520bp insertion, but bedpull picks it up
### Phased Assembly Comparison
Extract similar regions from maternal and paternal haplotypes:
```bash
# Maternal haplotype
bedpull --paf hg002mat_to_ref.paf \
--query_ref hg002_maternal.fasta \
--bed regions.bed \
--output maternal_sequences.fasta
# Paternal haplotype
bedpull --paf hg002pat_to_ref.paf \
--query_ref hg002_paternal.fasta \
--bed regions.bed \
--output paternal_sequences.fasta
```
### Per-Haplotype Consensus Building
`bedpull` doesn't build consensus sequences itself. Pair it with
[poa-consensus](https://github.com/Psy-Fer/poa-consensus), a banded partial-order
alignment tool built for that purpose. Use `--hap_split` to bin reads from a
BAM's `HP` tag (or a PAF's `hp:i:` tag) into one FASTA per haplotype, then run
`poa-consensus` on each file to get a per-haplotype consensus. Use a single-region
BED (or one BED file per locus) so each haplotype FASTA holds reads from only
that region; `poa-consensus` builds one consensus per input file.
```bash
# 1. Extract reads for one region, split by haplotype
bedpull --bam alignments.bam \
--bed rfc1.bed \
--hap_split \
--output rfc1_reads.fasta
# -> rfc1_reads.h0.fasta (unphased), rfc1_reads.h1.fasta, rfc1_reads.h2.fasta
# 2. Install poa-consensus (one-time)
cargo install poa-consensus --features cli
# 3. Build a consensus for each phased haplotype
poa-consensus rfc1_reads.h1.fasta > rfc1_h1_consensus.fasta
poa-consensus rfc1_reads.h2.fasta > rfc1_h2_consensus.fasta
```
## How It Works
### BAM Extraction
1. For each BED region, find overlapping alignments
2. Use CIGAR string to calculate exact query positions
3. Extract the aligned portion of the read sequence
4. Handles insertions, deletions, and clipping
### PAF Extraction
1. Builds an index of the PAF file (`*.paf.idx`)
2. For each BED region, query the index for overlapping alignments
3. Use CIGAR string to calculate exact query positions
4. Extract sequence from the query FASTA file using calculated positions
5. Return sequences with both reference and query coordinates in header
6. Write bed file with query coordinates
7. With `--stitch_records`, if no single record spans the region, look for a chain of
records (same query contig and strand, contiguous in target space) that together do,
and extract one sequence across the whole chain
## Why bedpull?
Traditional coordinate conversion tools (like liftOver) fail when:
- Large insertions exist in one assembly
- Structural rearrangements disrupt alignment impacting chain file generation
- Multiple alignment blocks complicate coordinate mapping
bedpull solves this by:
- parsing CIGAR operations of full alignments to get exact coordinates
- stitching a region across multiple chained PAF records when a large SV splits what
would otherwise be one alignment (`--stitch_records`)
- reporting which input regions produced no output and why, via `--unmapped <file>` (similar to liftOver's own `-unmapped` file, but across BAM/CRAM/PAF modes)
## Benchmarks
liftOver is the default most people use, but it isn't the only coordinate lifting option: `paftools.js liftover` (minimap2's own PAF-based lifter), `pslMap` (UCSC kent's base-by-base chain projection), and `liftOver -multiple` + `liftOverMerge` (liftOver's own multi-hit mode plus a merge step) all perform better compared to plain liftOver. However, against all of them, bedpull (especially with `--stitch_records`) comes out ahead on every metric, benchmarked on 24,965 real structural variant windows from the GIAB HG002 v5.0q SV truth set (hs1 reference, HG002 T2T-Q100 diploid assembly):
| | bedpull | bedpull+stitch | liftOver | paftools.js | pslMap | liftOver -multiple |
|---|---|---|---|---|---|---|
| Overall recall | 68.1% | **71.6%** | 36.7% | 68.0% | 67.2% | 68.2% |
| DEL recall | 65.8% | **69.1%** | 5.0% | 65.7% | 64.6% | 65.5% |
| INS recall | 70.5% | **74.2%** | 69.8% | 70.4% | 69.9% | 70.9% |
| Recall on SVs ≥5000bp | 91.4% | **92.7%** | 44.3% | 85.2% | 91.4% | 70.4% |
| Windows with zero output | 1,420 (5.7%) | **196 (0.8%)** | 8,027 (32.2%) | 179 (0.7%) | 3,078 (12.3%) | 252 (1.0%) |
| F1 | 0.810 | **0.834** | 0.537 | 0.809 | 0.804 | 0.811 |
| Detection AUC | 0.919 | **0.974** | 0.596 | 0.969 | 0.850 | 0.966 |
Precision is 100% for every tool (verified against 24,965 size-matched negative-control
windows), so the recall/F1/AUC differences above reflect a real difference in what each
tool can detect, not a precision/recall tradeoff.
Full methodology, a second independent confirmation leg (hg38↔hs1, official UCSC chain),
and the reasoning behind every result: [`benchmark/README.md`](benchmark/README.md).
## Input Formats
### BED file
Standard 3-column BED format (0-based):
```
chr1 1000 2000
chr2 5000 5500
```
Optional 4th column for region names:
```
chr1 1000 2000 region1
chr4 39318077 39318136 RFC1
```
### BAM file
Must be coordinate-sorted. If the `.bai` index is missing, bedpull builds it
automatically the first time you run it against that file:
```
samtools view -bS example.sam | samtools sort -o example.bam
bedpull --bam example.bam --bed regions.bed --output out.fasta
```
### CRAM file
Must be coordinate-sorted. If the `.crai` index is missing, bedpull builds it
automatically the first time you run it against that file. Pass `--reference` if the
CRAM is reference-compressed (the common case). A reference-compressed CRAM opened
without `--reference` decodes sequences incorrectly rather than raising an error, so
pass `--reference` whenever extracted sequences look empty or garbled.
### PAF file
Standard PAF format from minimap2 or similar aligners. Must include CIGAR string (`cg:Z:` tag).
Example alignment command:
```bash
minimap2 -cx asm5 --cs=long -t 16 reference.fasta query.fasta > alignment.paf
```
### FASTA file
If the `.fai` index is missing, bedpull builds it automatically the first time
you run it against that file (equivalent to `samtools faidx assembly.fasta`).
## Output
### FASTA headers contain:
**BAM extraction:**
```
>read_name|reference_region|alignment_info
```
With `--partial`, a read that doesn't fully span the requested region gets an extra
`missing_left=Nbp` and/or `missing_right=Nbp` suffix showing how many reference bases
of the region (or `--flanks` window) fall outside the read's alignment:
```
>read1|chr4:39260000-39380000|RFC1|missing_left=3480bp|missing_right=55332bp
```
Use `--min_partial_coverage <0.0-1.0>` alongside `--partial` to drop reads that cover less than
that fraction of the requested window, instead of accepting any overlap however small (similar
to liftOver's `-minMatch`):
```bash
bedpull --bam reads.bam --bed regions.bed --output out.fasta --partial --min_partial_coverage 0.9
```
**PAF extraction:**
```
>query_name|chr:ref_start-ref_end|bed_name|query_name:query_start-query_end|strand
>chr4_PATERNAL|chr4:39318077-39318136|RFC1|chr4_PATERNAL:39438031-39438610|+
```
## Citation
If you use bedpull in your research, please cite:
```
GitHub: https://github.com/Psy-Fer/bedpull
```
## License
MIT License - see LICENSE file for details
## Author
James Ferguson (@Psy-Fer)
Garvan Institute of Medical Research
## Contributing
Issues and pull requests welcome!
## Related Tools
- [bladerunner](https://github.com/Psy-Fer/bladerunner) - STR detection and genotyping
- [poa-consensus](https://github.com/Psy-Fer/poa-consensus) - Build consensus sequences from reads extracted by bedpull
- [samtools](http://www.htslib.org/) - SAM/BAM manipulation
- [bedtools](https://bedtools.readthedocs.io/) - Genome arithmetic
- [minimap2](https://github.com/lh3/minimap2) - Sequence alignment
