bevy_carnage

⚠️ Vibe Coded — written by an AI agent working from a human's direction. It is used in a shipping game and covered by tests, but it has had no line-by-line human audit. Read it before you trust it.

Deterministic runtime gore for Bevy. Plane-cut a character's own meshes into watertight-capped chunks, bore bullet channels through them, and drive blood, spatter and impact feel off the wounds that result.

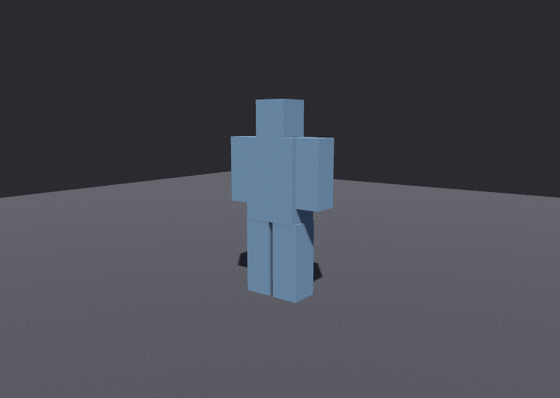

That is examples/explode.rs at its own 0.4× playback. The subject is intact, then it is its own fragments — the "break" is one despawn and a spawn, because the fracture was computed long before. The red is not a colour choice, it is the whole idea: every fragment comes back as two meshes, the subject's own surface and the faces this cut just created, so the inside can take a different material. Render both with the skin material and the same fragments stop looking broken and start looking disassembled.

This repository is a mirror; Ladvien/foundation_vs_slop is the source of truth. The crate is vendored there as a workspace member at crates/bevy_carnage/, developed and verified there against that lockfile, and this repository is re-derived from it by git subtree split. The flow is one-way and has exactly three stops: monorepo → this mirror → crates.io. An earlier revision of this banner claimed the arrow pointed the other way — it did, between 2026-08-16 and 2026-09-01, and BACKLOG.md records why it was reversed: the crate was pinned by rev in the game, so every fix meant a sibling clone, a push and a rev bump, which is not a way to do sustained work. The stale-read hazard that arrangement named is still real: a subtree split carries only commits, so anything sitting uncommitted in the monorepo's working tree cannot arrive here.

Features

• One bake, every granularity. A bake keeps the whole hierarchy it cut through, so the same cached asset answers "break this into three" and "break this into forty" without cutting twice.
• Localised damage. A bond graph records which fragments actually share a face. Shoot a shoulder and the arm comes off while the body stays standing — the joints are found by geometry, not authored.
• Five region queries — projectile, slash, swept blade, blast, directional pull — each a pure function of the bake plus some geometry.
• Bullet holes that go through, and gore that comes out the far side. A segment plus a radius subtracts a convex prism from the proxy, in closed form and as plane cuts only, so the channel is real geometry with a red interior, the pieces around it stay bonded, and every shard is still a convex-hull collider. The material the channel removed comes back as Ejecta — a spawnable convex chunk with the wall's raw interior and a patch of skin at each end — so the hole and the gore are the same subtraction, and the bore conserves volume. Dials for radius, barrel sides, raggedness, exit flare, and how many pieces the plug breaks into — because one convex prism ejected whole reads as a dowel, which is exactly what an apple corer leaves.
• Progressive destruction. Hit it again and it comes apart further. Island detection is stateless; you own the damage state.
• Two meshes per fragment — the subject's own skin and the newly-cut faces, separately, so the inside can take a different material.
• Solver-ready colliders. Every fragment is one convex cell. Collider::convex_hull(frag.cell.points()) and you are done — no decomposition at spawn, no trimesh.
• Shape and look dials — off-centre cuts, size spread, weak-axis bias, crumpled cut faces, rounding — so the output reads as torn rather than as shattered ice.
• Reproducible. Two runs of the same build on the same asset produce bit-identical fragments, and a test enforces it.
• Wounds, as values. Wound { at, normal, area, severity, kind } — subject-local, derived only from baked geometry. A severed bond is a wound (its centroid, normal and area, with no arithmetic); a bore's channel wall is one too, because face_is_cut already answers true for it. So a bullet hole bleeds through exactly the same code a bisection does, with no second path.
• A spatter model with a citation, not a preset. Comiskey, Yarin & Attinger (Phys. Rev. Fluids 3, 063901, 2018) show blood disintegrating by percolation, which makes droplet size and initial speed inversely correlated — many small ones fast, few large ones slow, bracketed by their measured 40 m/s forward and 8 m/s back spatter. One draw sets size and its inverse sets speed, on the CPU and in the shader both, and a test asserts the correlation (Pearson r < -0.9) rather than a comment claiming it. Landing points are solved in closed form, so where blood lands exists with the render feature off — which matters when a pool's position feeds simulation.
• A pulsatile bleed schedule in integer ticks. One state machine over tick - opened_at: integer modulo for the heartbeat, so a pulse train cannot drift or depend on frame rate, and a monotone taper to exactly zero at the clot. pulse_wound scales the wound's severity, so the first arterial jet and the last seep are the same model at two numbers.
• Impact feel as numbers you apply. Trauma, hit-stop ticks and a tick-indexed shake offset eased along the wound normal — grounded in Pichlmair & Johansen's game-feel survey, which says in as many words that shake should not be random. The crate never writes Time<Virtual> and never touches a camera: it returns values and you own both.
• GPU blood behind a feature. bevy_hanabi is optional and gated on vfx, so the default-off build resolves no particle system and no render stack. It is admitted on the terms that keep the boundary meaningful, and one of them is sharp: Hanabi 0.19 has no GPU→CPU readback at all, so a particle cannot reach a golden even by mistake.
• No physics dependency, no RNG dependency, no game logic. bevy, optional serde, isomesh for validation, and optional bevy_hanabi behind vfx. hash_f32 is the only source of randomness in the crate, and it is frozen by a test.

Install

[dependencies]
bevy_carnage = "0.1"

Requires Bevy 0.19 and a Rust toolchain with edition 2024.

Quick start

Mark what should break, then read the bake back when it dies. The launch is yours, and so is the solver.

use bevy::prelude::*;
use bevy_carnage::{CarnagePlugin, CarnageSystems, DetachedPart, FractureCache, FractureSubject};

#[derive(States, Debug, Clone, PartialEq, Eq, Hash, Default)]
enum GameState { #[default] Playing, Paused }

fn wire(app: &mut App) {
    app.add_plugins(CarnagePlugin)
        // The crate configures no run condition — when the bake runs is yours.
        .configure_sets(Update, CarnageSystems.run_if(in_state(GameState::Playing)));
}

// Mark what should break, and what should come off intact.
fn spawn_enemy(mut commands: Commands, assets: Res<AssetServer>) {
    let scene: Handle<WorldAsset> = assets.load("enemy.glb#Scene0");
    let enemy = commands.spawn((FractureSubject(scene.clone()), WorldAssetRoot(scene))).id();
    // ...once the scene streams in, tag whatever should detach intact:
    commands.entity(enemy).insert(DetachedPart);
}

// At the moment of death, read the bake at whatever granularity this death deserves.
fn on_death(cache: Res<FractureCache>, subject: &FractureSubject) {
    for frag in cache.leaves(subject.0.id()) {          // finest
        let _ = (&frag.outer_mesh, &frag.cap_mesh, frag.center_local, frag.half_extents);
    }
    for frag in cache.frontier_of(subject.0.id(), 3) {  // the same bake, as three big chunks
        let _ = frag.id;
    }
}

You do not need an App to use the fracture itself. fracture_mesh is the whole pipeline with no assets and no ECS — meshes in, meshes out:

use bevy::math::{Mat4, Vec3, primitives::Cuboid};
use bevy::mesh::Mesh;
use bevy_carnage::{CutSettings, ProxyCell, fracture_mesh};

let body = Mesh::from(Cuboid::new(1.0, 2.0, 1.0));

// **The proxy is yours.** This crate cuts a convex decomposition and carries your triangles along
// as a payload — it never cuts the triangle soup. One cell per connected shell; a consumer already
// running V-HACD or CoACD for colliders has these, and a blocked-out subject can use `from_box`.
let proxy = vec![ProxyCell::from_box(Vec3::ZERO, Vec3::new(0.5, 1.0, 0.5))];

let cut = CutSettings::new(
    12,          // finest fragment count
    0.15,        // stop cutting below this fraction of the subject's size
    0xC0FFEE,    // seed — same seed, same pieces, every run
);
// Tier A — the convex cells — exists for every node the instant this returns. The drawn meshes are
// built for the nodes you ask for, which is why the accessors take `&mut`.
let mut baked = fracture_mesh(&[(&body, Mat4::IDENTITY)], &proxy, &cut);

assert_eq!(baked.frontier_of(3).len(), 3);   // one bake, read back as three pieces
let pieces = baked.leaves();                 // ...or as all of them
assert!(pieces.len() > 1);
assert!(pieces.iter().all(|p| p.outer.is_some() || p.cap.is_some()));

Demos

docs/DEMOS.md — all six examples, with recordings, what each is for, and how to regenerate the clips.

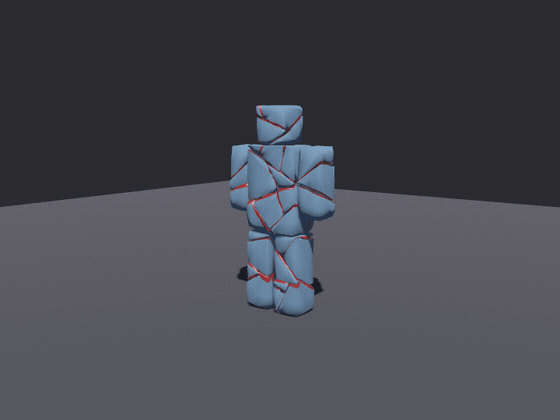

That is examples/sever.rs, on a fixed script. The subject stays standing between blows and what comes off depends on where you hit it. Run it and you aim it yourself:

cargo run --release --example carnage          # needs a GPU
cargo run --release --example sever            # needs a GPU
cargo run --release --example explode          # needs a GPU
cargo run --release --example bullet_holes     # needs a GPU
cargo run --release --example fracture_cube    # terminal only — no window, no GPU

  arrows / WASD   move the aim marker
  1 … 5           projectile · slash · swept blade · blast · pull
  G               granularity — cycle which frontier of the bake is standing
  T               soften — cycle how hard the drawn fragments are rounded
  R               reset

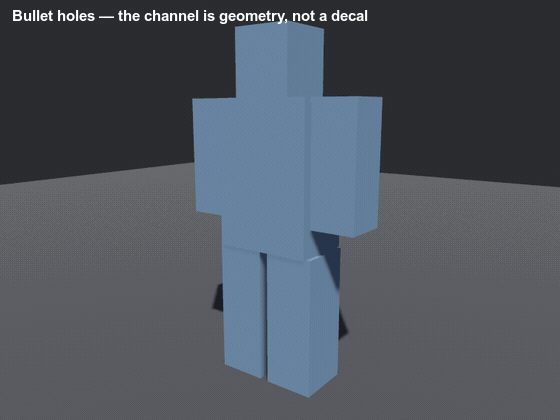

That is examples/bullet_holes.rs, on a fixed script. Each shot is a Bore — a segment, a radius and three look dials — subtracted from the proxy before any cut, so the hole has a wall rather than being painted on a surface, and the plug it removed is thrown out the exit side as a chunk of gore that lands and becomes a flat stain. The subject keeps standing because the shards around a channel share their radial faces bit-for-bit and the bond graph reads them as one island. Run it and you aim it yourself, with [/] for calibre, J for raggedness, F for exit flare and K for how many pieces the plug breaks into.

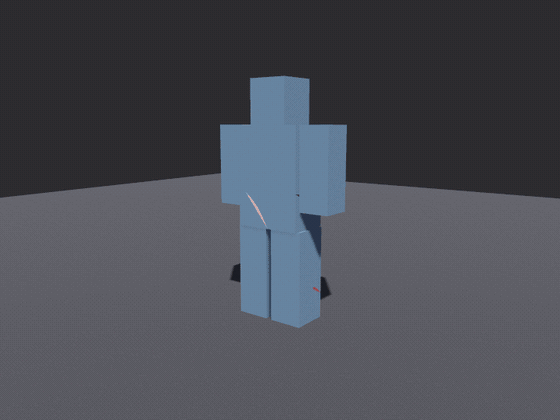

That is examples/carnage.rs, on a fixed script — and it is the one clip that shows the whole crate at once. A bullet hole and a severance are geometrically different openings, and they bleed through the same code: frame 18 is a bore, the rest are severances, and nothing downstream can tell them apart beyond a WoundKind mixed into a seed. The spray leaves each cut along that cut's own normal, the floor stains are solved on the CPU and would exist with the render feature off, and every severed piece keeps pulsing at its own heartbeat until it clots. Run it and you aim it yourself, with 1–5 for the five blows and 6 to shoot a channel through.

Its recorder, capture_carnage, prints one line that two runs must agree on — carnage: frames=… wounds=… stains=… digest=… — which is the determinism check for the whole layer: the bake, the bond graph, wound extraction and its canonical sort, the wound seed, the droplet draws, the ballistic solve and the pulse schedule. A digest that moves means something read a clock, an Entity, or an unsorted iteration order.

Why: break the asset once, not the frame

The tempting version of this feature computes a fracture at the moment of impact. The shipped version, in more or less every game that has one, does not — it pre-fractures the asset and swaps it in at runtime, which is exactly what Müller, Chentanez & Kim document as the practical norm (ACM TOG 2013). Sellán et al.'s Breaking Good (ACM TOG 2022) is the most physically honest option available, and its fragments are precomputed offline through tetrahedralization and a conic solve in a Python/libigl toolchain — not something a minimal-dependency Rust crate can embed.

But a static pre-fracture cannot answer where it was hit, and Müller says so plainly: "When a gamer shoots at a glass window, she expects the spider-web-shaped fracture pattern to be centered around the location where the bullet hit the glass. Anything else clearly destroys the illusion." So the bake is not a fragment set. It is a hierarchy plus an adjacency graph, and every blow is a query against it. That is the shape PhysX Blast and Unreal's Chaos arrived at independently.

The cut runs on a convex proxy, never on the triangle soup. Müller's load-bearing observation is that plane ∩ convex polyhedron = convex polygon, which makes every cut face convex by construction and a centroid fan over it provably valid. There is no boundary-loop recovery in this crate because there is no input that needs one. The render triangles ride along as a payload, assigned to whichever cell bounds them and split only where they straddle a plane.

The cost of that choice is the proxy itself: you supply it. See "What it deliberately does not do".

The API

Baking, in the ECS

Reading a bake back

Where the blow landed

Each query returns a Reach — a severity in [0, 1] per bond — and you pick the threshold at which one gives way.

Geometry, with no ECS

The carnage layer

All of it pure functions over a Wound, all of it available with vfx off. Nothing here reads a clock, spawns anything, or writes a Transform.

Behind vfx only: CarnageVfxPlugin, CarnageVfxSystems, CarnageEffects, EffectTtl, the five effect builders, and SplatTextures / spawn_stain / splat_image / build_splats for stain decals. A camera rendering a stain must carry DepthPrepass.

The dials

FractureSettings sizes the bake per asset; CutSettings is what a single cut actually needs.

The last four are look dials, and the last two touch only the drawn mesh: the proxy cell stays exactly planar and convex, so colliders and every watertightness guarantee are untouched. fracture_cube prints the proof — cell volume identical at every soften, drawn area falling away.

What it deliberately does not do

It does not compute a convex decomposition. You supply the proxy cells; the crate cuts them. A consumer already running V-HACD or CoACD for colliders has a decomposition, and forcing a second, different one would be the fracture disagreeing with the physics about what the object is. ProxyCell::from_box covers a blocked-out subject. Boring is not an exception to this: a Bore subtracts a prism you described from a cell you supplied, by plane splits with a closed-form decomposition, so what comes back is still a set of cells whose union is the shape you handed in — and a concave cell is still refused at the door.

It does not move anything. No rigid bodies, no velocities, no physics dependency. The bake hands you a mesh and a convex cell per piece; spawning them, building a collider and throwing them is your game's decision and your solver's job. examples/explode.rs integrates its own ballistics in thirty lines to make the point.

It does not know what died. No health, no factions, no damage types. It hands back a reach — geometry — and your game decides what an area is worth and what threshold means "this gives way".

It does not own your schedule. The plugin adds one system to Update in one public set. Whether that runs while a menu is open is yours to configure.

It does not bond cells that merely touch. Two cells are neighbours only when they share a coplanar face. V-HACD and CoACD produce cells that abut without their boundary polygons agreeing, so each root's subtree comes out as its own island unless your decomposition shares faces. Closing that with a proximity heuristic would silently weld a head to a torso.

It fractures the bind pose. Geometry is read from Mesh3d as authored, so a skinned character breaks from its rest pose, not its death pose. A death-pose snapshot is the proper upgrade; per the fracture literature the gap is not visible when the chunks are flung fast.

Determinism

Two runs of the same build, on the same asset, must produce bit-identical fragments. Two things make that true, and both were learned the hard way:

The seed comes from the asset PATH, never its AssetId. An AssetId is a slot index in the asset arena, handed out by async load order — so the same file gets a different id run to run, hashes to a different seed, and the mesh is partitioned along completely different planes. Measured, before the fix: 23 of 23 fragments differed, in half-extents as well as centres.

The vertex soup is assembled in a canonical order. Children order for a glTF scene is whatever order async instantiation happened to add nodes in. Fragment centroids are float sums over the merged soup, float addition is not associative, and so an unsorted soup moves every centroid by a few ULPs — same fragment count, positions off in the last bits. Sub-meshes are sorted by (mesh asset path, world-matrix bits) before a single vertex is appended, and the key is checked at runtime for uniqueness under debug_assertions or strict-order.

hash_f32 is a hand-rolled integer hash with its output frozen in a test, for the same reason: there is no RNG dependency here, because a stream that may change between minor versions cannot underwrite any of the above.

Note what this does not claim. Fragment geometry is f32 arithmetic, so cross-architecture bit-identity is not promised — only same-build, same-machine reproducibility, which is what a replay or a regression golden actually needs.

Status

0.1.0, published to crates.io, and pre-release in the sense that matters: the API can still move. It is used in one shipping game — Ladvien/foundation_vs_slop, which is also where it is developed and consumes it by path, not by version.

The API is not stable before 0.2. 0.1 pins it exactly enough — Cargo's caret range on a 0.x admits 0.1.z only, so a breaking change arrives as 0.2 and never by surprise.

Known limitations are listed under "What it deliberately does not do" rather than hidden; BACKLOG.md carries the reasoning behind each decision, including the predictions that turned out wrong.

Contributing

This repository is a read-only history mirror, re-derived by git subtree split from crates/bevy_carnage/ in Ladvien/foundation_vs_slop, which is where the crate is developed. Nothing is ever edited here and nothing is pulled back, so a PR opened against this repo cannot be merged — open issues and PRs on the monorepo instead.

Before opening a PR:

cargo test                  # unit + tests/leaf.rs + doctests
cargo build --release       # NOT redundant with `cargo test` — see below
cargo build --examples
cargo clippy --all-targets  # 12 warnings pre-exist; add none. See BACKLOG.md's definition of done

cargo build --release is load-bearing. cargo test compiles dev-dependencies, and the dev-dependency here is the full bevy umbrella. Cargo unifies features, so under cargo test this crate silently gets every bevy feature there is and a missing entry in its own [dependencies] cannot fail. That is not hypothetical — WorldAsset was reached for while only bevy_scene was declared, and every test passed on a crate that did not build.

Two house rules worth knowing before you write code:

• One path per feature. No fallbacks, no legacy shims, no stub placeholders. Where the primary path cannot produce a usable result, it fails loudly. seed_from_path refusing to bake an unpathed handle is the rule.
• This crate never learns what died. No health, no factions, no damage, no physics. tests/leaf.rs enforces the dependency half of that; the naming half is on you.

Anything that changes emitted geometry regenerates the clips in docs/ — see docs/DEMOS.md.

References

• Müller, Chentanez & Kim, "Real-Time Dynamic Fracture with Volumetric Approximate Convex Decompositions", ACM TOG 32(4), 2013. DOI 10.1145/2461912.2461934
• Sellán, Luong, Mattos Da Silva, Ramakrishnan, Yang & Jacobson, "Breaking Good: Fracture Modes for Realtime Destruction", ACM TOG 41(4), 2022. DOI 10.1145/3549540
• Huang & Kanai, "DeepFracture: A Generative Approach for Predicting Brittle Fractures", 2023. arXiv 2310.13344 — Mott's fragment-size distribution
• Schvartzman & Otaduy, "Fracture Animation Based on High-Dimensional Voronoi Diagrams", I3D 2014.
• Sutherland & Hodgman, "Reentrant Polygon Clipping", CACM 17(1), 1974.
• NVIDIA Blast — the chunk-hierarchy / support-graph / damage-shader vocabulary this crate's runtime half borrows.

License

MIT OR Apache-2.0, at your option.
