Struct ConditionalFormatFormula

pub struct ConditionalFormatFormula { /* private fields */ }

The ConditionalFormatFormula struct represents a Formula style conditional format.

ConditionalFormatFormula is used to represent a Formula style conditional format in Excel. A Formula conditional format highlights formula values in a range based on a user supplied formula.

For more information see Working with Conditional Formats.

Examples

Example of adding a Formula type conditional formatting to a worksheet. Cells with odd numbered values are in light red while even numbered values are in light green.

    // Write a conditional format over a range.
    let conditional_format = ConditionalFormatFormula::new()
        .set_rule("=ISODD(B3)")
        .set_format(format1);

    worksheet.add_conditional_format(2, 1, 11, 10, &conditional_format)?;

    // Write another conditional format over the same range.
    let conditional_format = ConditionalFormatFormula::new()
        .set_rule("=ISEVEN(B3)")
        .set_format(format2);

    worksheet.add_conditional_format(2, 1, 11, 10, &conditional_format)?;

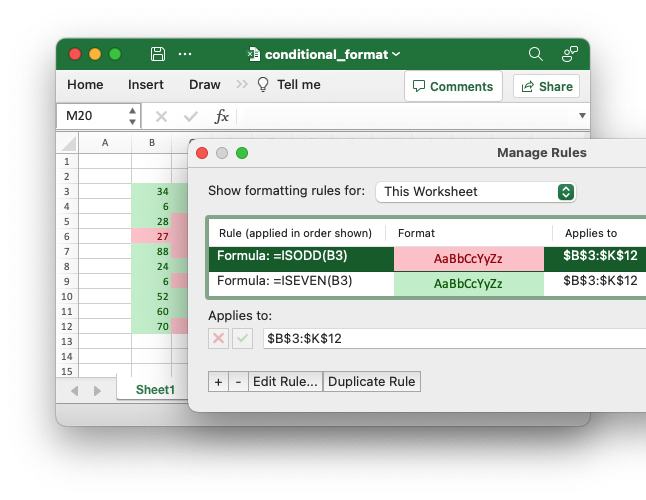

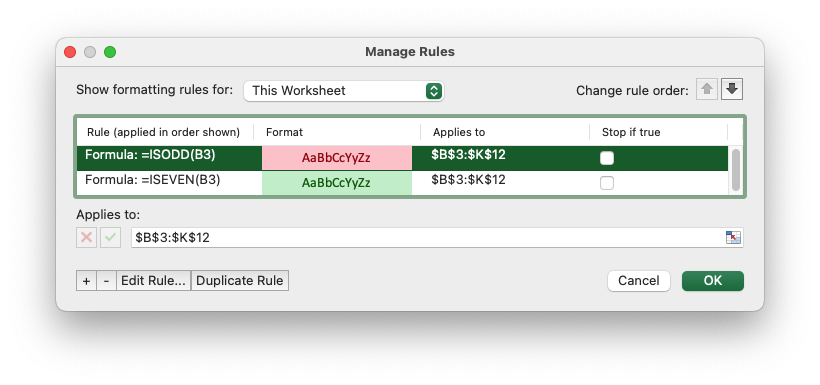

This creates conditional format rules like this:

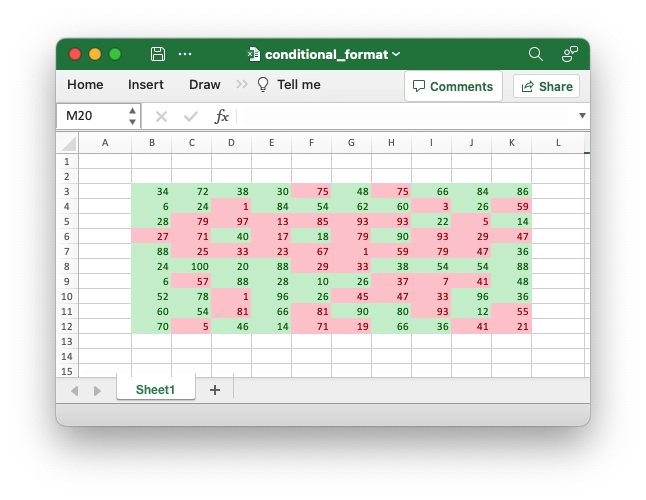

And the following output file:

Implementations

impl ConditionalFormatFormula

pub fn new() -> ConditionalFormatFormula

Create a new Formula conditional format struct.

pub fn set_rule(self, rule: impl Into<Formula>) -> ConditionalFormatFormula

Set the rule of a Formula conditional format.

Set the formula rule in a Formula style conditional format.

There are some caveats to be aware of when creating the formula:

• The formula must evaluate to a boolean, number, date, time or string.
• Some newer “dynamic range” style functions aren’t supported by Excel in Formula conditional formats.
• The formula should be in English with US style punctuation. See Formula for details.

If you encounter any issues you should verify that the formula works in Excel before transferring it to rust_xlsxwriter.

Parameters

• value: A Formula value or type that converts “into” a Formula such as a &str or &Formula.

Examples

Example of adding a Formula type conditional formatting to a worksheet. Cells with odd numbered values are in light red while even numbered values are in light green.

    // Write a conditional format over a range.
    let conditional_format = ConditionalFormatFormula::new()
        .set_rule("=ISODD(B3)")
        .set_format(format1);

    worksheet.add_conditional_format(2, 1, 11, 10, &conditional_format)?;

    // Write another conditional format over the same range.
    let conditional_format = ConditionalFormatFormula::new()
        .set_rule("=ISEVEN(B3)")
        .set_format(format2);

    worksheet.add_conditional_format(2, 1, 11, 10, &conditional_format)?;

Output file:

pub fn set_format(self, format: impl Into<Format>) -> ConditionalFormatFormula

Set the Format of the conditional format rule.

Set the Format that will be applied to the cell range if the conditional format rule applies. Not all cell format properties can be set in a conditional format. See Excel’s limitations on conditional format properties for more information.

See the examples above.

Parameters

• format: The Format property for the conditional format.

impl ConditionalFormatFormula

pub fn set_multi_range( self, range: impl Into<String>, ) -> ConditionalFormatFormula

Set an additional multi-cell range for the conditional format.

The set_multi_range() method is used to extend a conditional format over non-contiguous ranges like "B3:D6 I3:K6 B9:D12 I9:K12".

See Selecting a non-contiguous range for more information.

Parameters

• range: A string like type representing an Excel range.

  Note, you can use an Excel range like "$B$3:$D$6,$I$3:$K$6" or omit the $ anchors and replace the commas with spaces to have a clearer range like "B3:D6 I3:K6". The documentation and examples use the latter format for clarity but it you are copying and pasting from Excel you can use the first format.

  Note, if the range is invalid then Excel will omit it silently.

pub fn set_stop_if_true(self, enable: bool) -> ConditionalFormatFormula

Set the “Stop if True” option for the conditional format rule.

The set_stop_if_true() method can be used to set the “Stop if true” feature of a conditional formatting rule when more than one rule is applied to a cell or a range of cells. When this parameter is set then subsequent rules are not evaluated if the current rule is true.

Parameters

• enable: Turn the property on/off. It is off by default.

Trait Implementations

impl Clone for ConditionalFormatFormula

fn clone(&self) -> ConditionalFormatFormula

Returns a duplicate of the value.

fn clone_from(&mut self, source: &Self)

Performs copy-assignment from source.

impl ConditionalFormat for ConditionalFormatFormula

fn validate(&self) -> Result<(), XlsxError>

Validate the conditional format.

fn rule( &self, dxf_index: Option<u32>, priority: u32, range: &str, guid: &str, ) -> String

Return the conditional format rule as an XML string.

fn x14_rule(&self, priority: u32, guid: &str) -> String

Return the extended x14 conditional format rule as an XML string.

fn format_as_mut(&mut self) -> Option<&mut Format>

Get a mutable reference to the format object in the conditional format.

fn format_index(&self) -> Option<u32>

Get the index of the format object in the conditional format.

fn multi_range(&self) -> String

Get the multi-cell range for the conditional format, if present.

fn has_x14_extensions(&self) -> bool

Check if the conditional format uses Excel 2010+ extensions.

fn has_x14_only(&self) -> bool

Check if the conditional format uses Excel 2010+ extensions only.

fn box_clone(&self) -> Box<dyn ConditionalFormat + Sync + Send>

Clone a reference into a concrete Box type.
