tui-overlay

A composable overlay widget for Ratatui: drawers, modals, popovers, and toasts from a single configurable primitive.

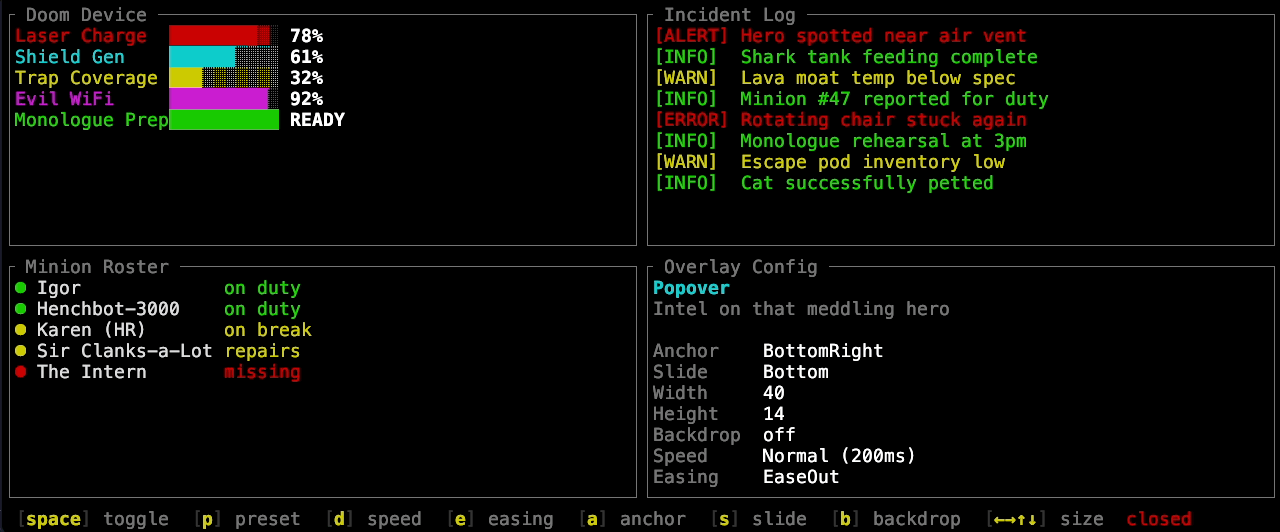

tui-overlay demo

Features

9-point anchor grid — position overlays at any corner, edge, or center
Directional slide animation — enter from any edge with configurable easing
Backdrop dimming — flatten underlying UI to a ghost while preserving structure
Independent width/height — partial drawers, compact notifications, full-screen modals
Block integration — wrap the overlay in a ratatui Block for titled borders
Hit testing — overlay_rect() enables click-outside-to-dismiss and mouse interaction
No content ownership — the overlay dims, draws chrome, and exposes inner area for you to render into

Installation

cargo add tui-overlay

Usage

use std::time::Duration;
use ratatui_core::layout::Constraint;
use ratatui_core::style::Color;
use tui_overlay::{Anchor, Backdrop, Easing, Overlay, OverlayState, Slide};

let overlay = Overlay::new()
    .anchor(Anchor::Right)
    .slide(Slide::Right)
    .width(Constraint::Percentage(30))
    .backdrop(Backdrop::new(Color::Rgb(0, 0, 0)));

let mut state = OverlayState::new()
    .with_duration(Duration::from_millis(150))
    .with_easing(Easing::EaseOut);

state.open();

Call state.tick(elapsed) every frame iteration (not just on tick events) for smooth animation, then render:

// 1. Main UI
frame.render_widget(main_view, area);

// 2. Overlay (backdrop + chrome)
frame.render_stateful_widget(overlay, area, &mut state);

// 3. Body content into the overlay
if let Some(inner) = state.inner_area() {
    frame.render_widget(detail_panel, inner);
}

Configuration Recipes

Pattern	Anchor	Slide	Width	Height	Backdrop
Side drawer	`Right`	`Right`	`30%`	`100%`	yes
Bottom drawer	`Bottom`	`Bottom`	`100%`	`40%`	yes
Partial bottom drawer	`BottomLeft`	`Bottom`	`60%`	`40%`	yes
Modal	`Center`	—	`60%`	`50%`	yes
Popover	`BottomRight`	`Bottom`	`Length(40)`	`Length(20)`	no
Notification	`TopRight`	`Top`	`Length(40)`	`Length(3)`	no
Toast	`BottomRight`	`Bottom`	`Length(40)`	`Length(3)`	no

Animation

Slide animations support four easing curves:

Curve	Effect
`Linear`	Constant speed
`EaseIn`	Slow start, fast end
`EaseOut`	Fast start, slow end (default)
`EaseInOut`	Slow start, slow end

Interrupting an animation (e.g. closing while opening) reverses from the current position — no snap.

Examples

Interactive demo

cargo run --example demo

Keys: [space] toggle · [p] preset · [d] speed · [e] easing · [a] anchor · [s] slide · [b] backdrop · [←→] width · [↑↓] height · [q] quit

License

Dual licensed under MIT or Apache 2.0.

Contributing

Contributions are welcome. Unless you explicitly state otherwise, any contribution intentionally submitted for inclusion in this work by you shall be dual licensed as above, without any additional terms or conditions.
