# Small-Map
[](https://github.com/ihciah/small-map/actions/workflows/ci.yml)
[](https://crates.io/crates/small-map)
[](https://docs.rs/small-map/latest/small_map/)
[](https://github.com/ihciah/small-map/blob/master/LICENSE-MIT)
[](https://github.com/ihciah/small-map/blob/master/LICENSE-APACHE)
An inline SIMD accelerated hashmap designed for small amount of data.
## Usage
```rust
use small_map::FxSmallMap;
// Don't worry about the 32 here, it's the inline size, not the limitation.
// If the size grows more than 32, it will automatically switch to heap impl.
type MySmallMap<K, V> = FxSmallMap<32, K, V>;
let mut map = MySmallMap::new();
map.insert(1_u8, 2_u8);
assert_eq!(*map.get(&1).unwrap(), 2);
```
Usually you can use this map for short lifetime and small key/values, for example, http or RPC headers.
You can use it like other normal hashmaps without worrying about its size.
## Choosing N
The choice of `N` involves a trade-off between inline storage benefits and struct size overhead:
**Struct size** = `N * (1 + sizeof(K) + sizeof(V)) + 2 * sizeof(usize) + sizeof(Hasher)`
### Considerations
1. **Key/Value size**: Larger K/V types increase struct size proportionally with N
2. **Pass frequency**: If the map is frequently passed by value (moved/copied), a large struct hurts performance
3. **Expected element count**: N should cover most use cases to avoid heap fallback
**Tip**: Choose N as a multiple of SIMD_WIDTH (16 on x86_64, 8 on aarch64) for optimal SIMD utilization. When uncertain, start with `N = 16` or `N = 32`.

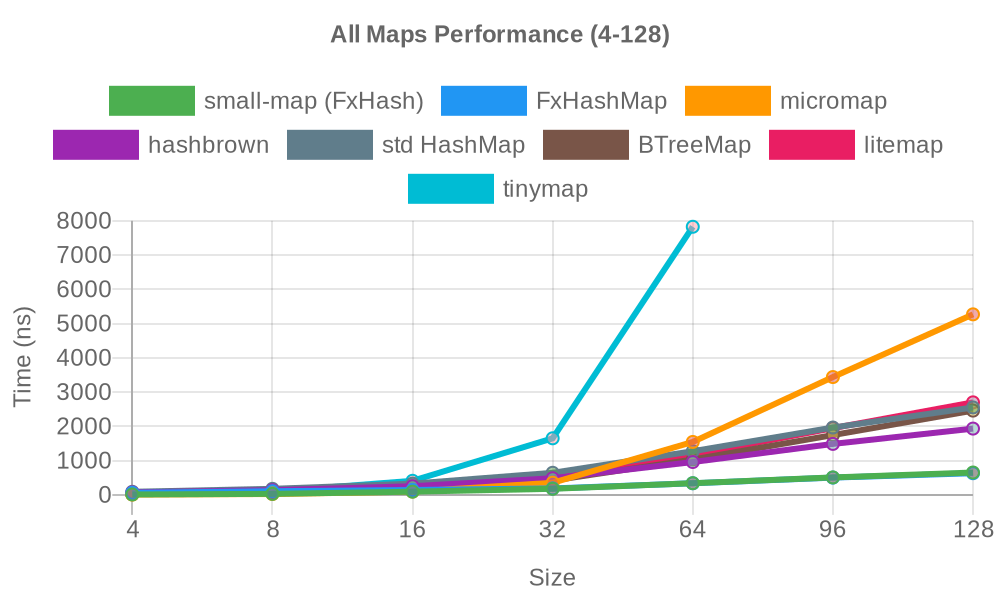

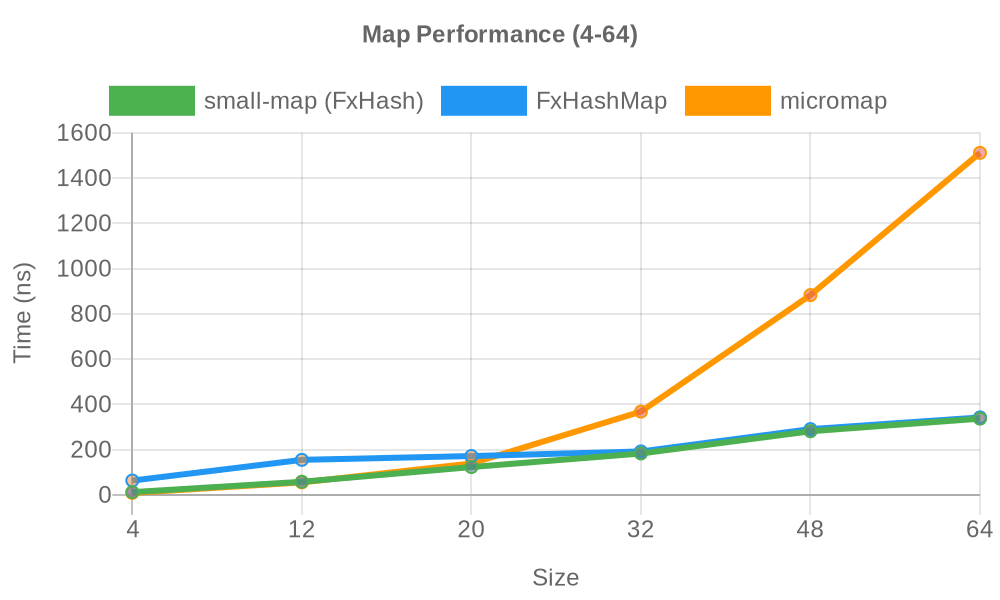

## Performance
The performance of SmallMap depends on the capacity, Key/Value size and operation scenario.
It is recommended to set the size to 16(or 32) because with SSE2 it can search 16 items within a single instruction. It is only recommended to use SmallMap for small Key/Values, such as numbers and strings.
> [!NOTE]
> The lower the time(ns), the better the performance. You can find the benchmark source code in the `benches` folder.
>
> Benchmark with u8 key/value on AMD Ryzen 9 7950X.
## How it Works
Like SmallVec, for HashMap with a small amount of data, inlining the data can avoid heap allocation overhead and improve performance.
SmallMap stores key-value pairs in a contiguous inline array, with an additional control byte array storing the hash fingerprint for SIMD-accelerated lookup.
### Lookup Strategy
The lookup strategy is determined at compile time based on `N` and at runtime based on current length:
1. **Linear Search** (no hash computation): When `N < SIMD_WIDTH` or `len < SIMD_WIDTH`
- Simply iterates through the array comparing keys directly
- Avoids hash computation overhead for small maps
- SIMD_WIDTH is 16 on x86_64 (SSE2) and 8 on aarch64 (NEON)
2. **SIMD Search** (with h2 hash): When `N >= SIMD_WIDTH` and `len >= SIMD_WIDTH`
- Computes h2 (8-bit hash fingerprint) from the key's hash
- Uses SIMD to compare h2 against 16 or 8 control bytes in parallel
- Only performs key comparison on h2 matches
3. **Heap Fallback**: When `len > N`
- Data is moved to a hashbrown-based heap HashMap
- Performance is equivalent to hashbrown
### Memory Layout
```text
┌─────────────────────────────────────┐
│ AlignedGroups (N bytes) │ ← h2 control bytes for SIMD
├─────────────────────────────────────┤
│ len: usize │
├─────────────────────────────────────┤
│ data: [(K, V); N] │ ← contiguous key-value pairs
└─────────────────────────────────────┘
```
### Complexity
Let `W` = SIMD_WIDTH (16 on x86_64, 8 on aarch64)
| Operation | len ≤ W | W < len ≤ N | len > N |
|-----------|---------|-------------|---------|
| `get` | O(len) | O(len/W) | O(1)* |
| `insert` | O(len) | O(len/W) | O(1)* |
| `insert_unique_unchecked` | O(1) | O(1) | O(1)* |
| `remove` | O(len) | O(len/W) | O(1)* |
| `iter` | O(len) | O(len) | O(capacity) |
\* amortized
## Credit
[Hashbrown](https://crates.io/crates/hashbrown) is heavily referenced to and copied by this project, and is a very elegant and efficient implementation.
