reai-board-sdk

An embeddable Rust crate that encapsulates USB / BLE connectivity, auto-reconnect, the HID protocol, mSBC decoding, and USB Audio capture for the ReAI Vibe Board — a voice-first mechanical keyboard built for AI coding workflows.

Product site | 中文文档 | API docs (docs.rs) | Changelog

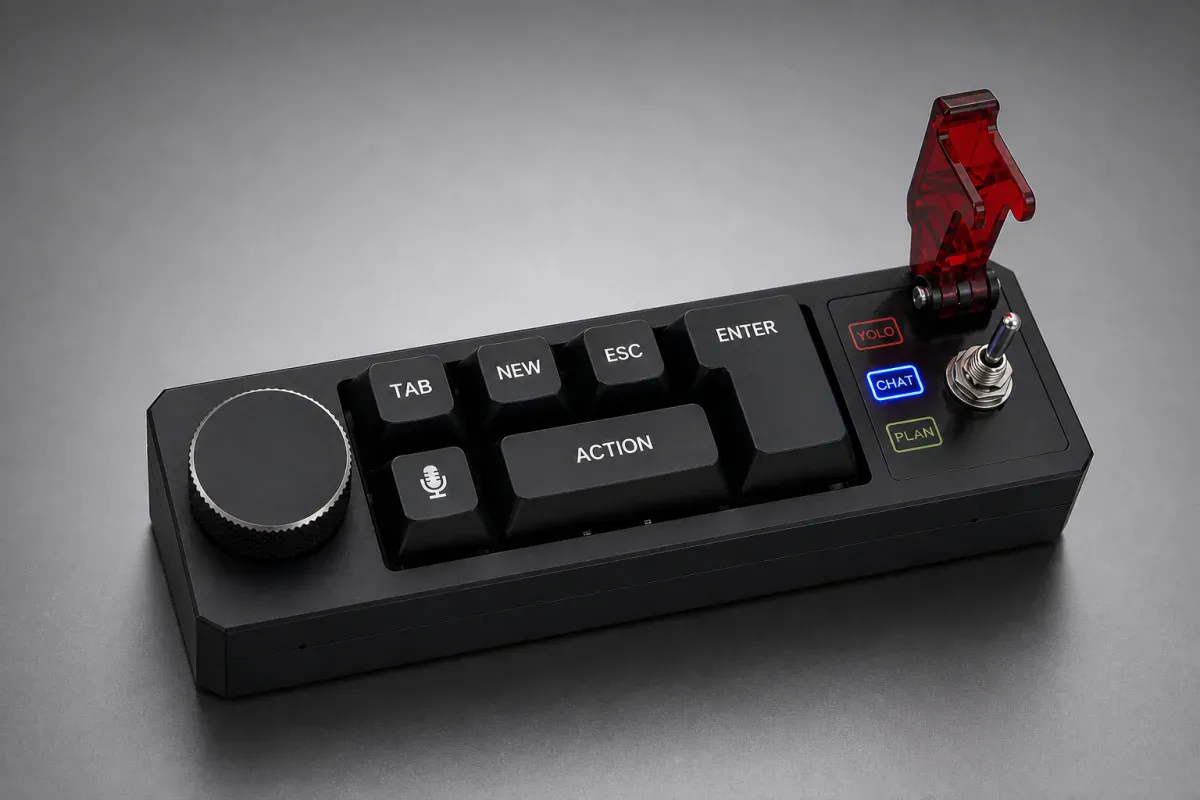

ReAI Vibe Board

The hardware

A CNC aluminium unibody board with a metal knob and a three-way mode lever. What the SDK can actually observe:

Hardware	What you get from the SDK
Knob (rotate + press)	`KeyPressEvent` — KEY0 / KEY1 encoder phases, KEY2 press
6 physical keys	`KeyPressEvent` KEY3–KEY8; KEY6 is the AI-voice key and also emits `AiVoiceKeyEvent`
Three-way mode lever	KEY9 / KEY10 / KEY11 → `ModeChangeEvent` (YOLO / PLAN / CHAT)
Microphone	`PcmSink` delivers 16 kHz mono f32 — USB Audio captured directly, BLE mSBC decoded first
USB-C / Bluetooth	Both transports, switched automatically

The twelve key_index slots above cover every input the firmware reports: three for the knob, six for the keys, three for the lever.

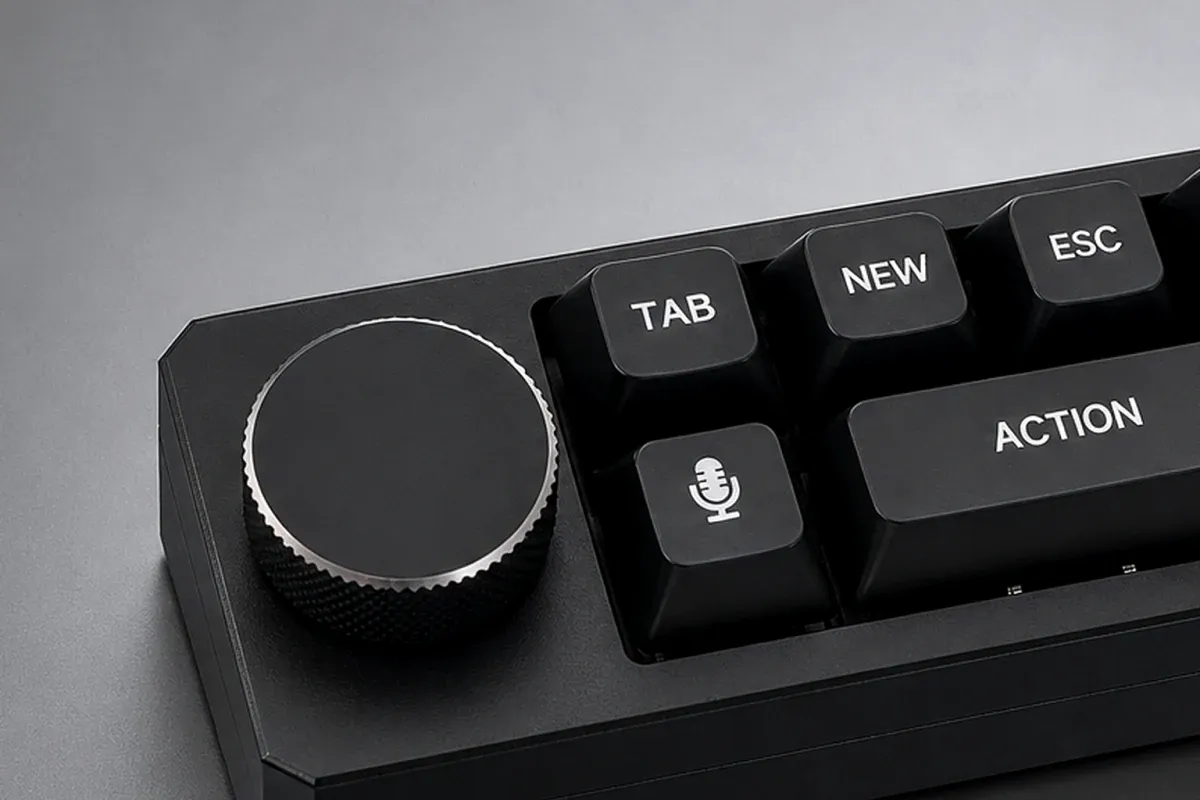

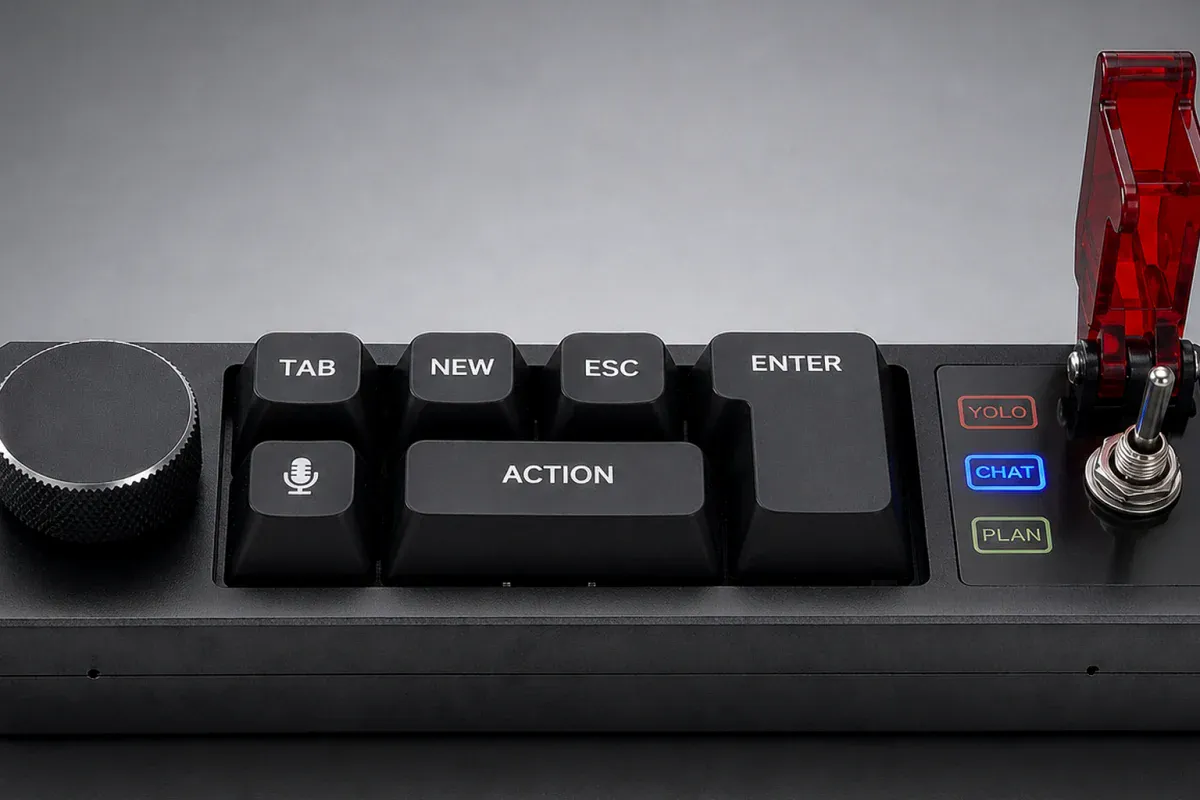

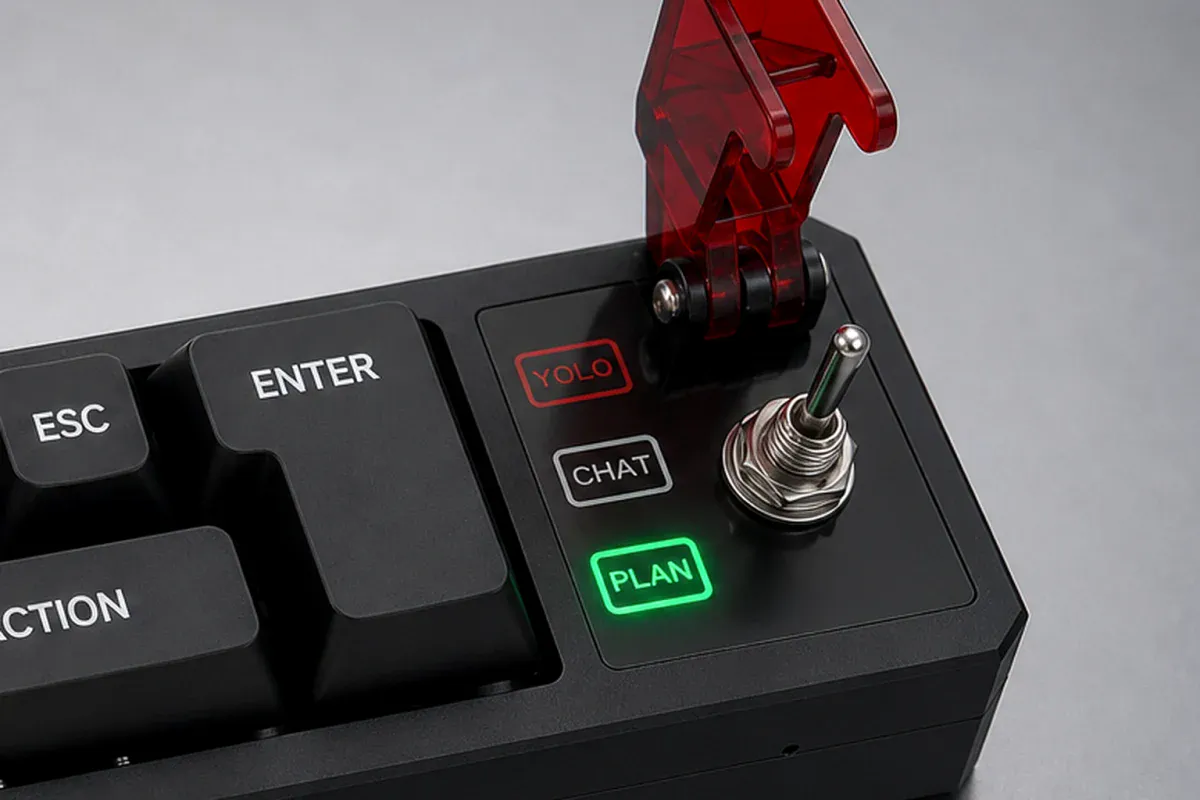

Metal knob	Dual-mic array	Tactile keys

What it gives you

One unified API for USB and BLE transports — same BoardDevice, same BoardEvent stream, same audio callbacks.
Auto hotplug + reconnect — plug in USB, it takes over BLE; pull USB, BLE resumes. No glue code to write.
16 kHz mono f32 PCM delivered through a single PcmSink::on_pcm trait — USB Audio is captured directly, BLE mSBC frames are decoded in-Rust (no ffmpeg dependency).
Typed device commands — read/write key config, device info, bindings blob, silent-record flag, sleep timeout, work mode, factory physical-key test (firmware v1.58+), plus a vendor USB-HID DFU path for OTA upgrade and recovery.
Three ways in for events — events() returns an EventStream (recv().await for tokio::select!, blocking_recv() for plain threads), on_event() is callback style, and subscribe() hands you the raw broadcast::Receiver if you want to drive it yourself.

The protocol constants (USB VID/PID, BLE GATT service UUIDs, command opcodes, device-name prefix) are tuned for ReAI Vibe Board hardware. They are not generic USB/BLE abstractions.

Quick start

Add to your Cargo.toml:

[dependencies]
reai-board-sdk = "0.2"
tokio = { version = "1", features = ["rt-multi-thread", "macros", "time", "sync"] }

Minimal usage:

use std::sync::Arc;
use reai_board_sdk::{BoardConfig, BoardDevice, BoardEvent};
use reai_board_sdk::sink::PcmSink;

struct ConsoleSink;
impl PcmSink for ConsoleSink {
    fn on_pcm(&self, samples: &[f32]) {
        // forward to STT / save to disk / draw a waveform — your choice
        let _ = samples;
    }
}

#[tokio::main]
async fn main() -> anyhow::Result<()> {
    let device = BoardDevice::open(BoardConfig::default())?;

    // (Optional) register an audio sink before start()
    device.set_pcm_sink(Arc::new(ConsoleSink));

    device.start().await?;  // spawns hotplug + auto-reconnect task

    let mut events = device.events();
    while let Ok(Some(evt)) = events.recv().await {
        match evt {
            BoardEvent::Connection(c) => println!("connected={} type={:?}", c.connected, c.connection_type),
            BoardEvent::KeyPress(k)   => println!("key {} {} pressed={}", k.key_index, k.key_name, k.pressed),
            BoardEvent::AiVoiceKey(a) => println!("AI voice pressed={}", a.pressed),
            BoardEvent::ModeChange(m) => println!("mode {}", m.mode),
            _ => {}
        }
    }
    device.shutdown();
    Ok(())
}

Supported platforms

OS	Status	Notes
macOS	Verified in CI	`hidapi` uses `macos-shared-device`
Linux	Builds in CI	Needs `libdbus-1-dev libudev-dev libasound2-dev pkg-config`; `udev` rules may be needed for raw HID
Windows	Expected to work, not yet verified	WinUSB / Zadig driver for raw HID access

All three transports (USB HID, USB Audio, BLE GATT) are implemented for every platform above — the difference is only how much of it CI proves. Windows has no CI job yet; treat it as untested rather than unsupported.

ble uses btleplug 0.12 (native async). First start() may take ~40 s on macOS while CoreBluetooth warms up its adapter — this is the OS, not the SDK.

OS permissions

The SDK never simulates or injects keyboard input — it reads from the device and sends it commands. That has two consequences:

No Accessibility / Input Monitoring required in principle. The board's keys flow over vendor HID 0xFFA0 / consumer 0x000C, not standard keyboard Usage 0x0007. macOS may still prompt — authorize if it does.
No microphone permission is required; USB Audio capture here is device→host only (no host mic).

macOS Bluetooth does prompt. Creating the CoreBluetooth adapter triggers the system authorization dialog, so the SDK defers adapter creation until BLE is actually needed — you will see the prompt on the first scan_ble_devices() / BLE connect, not at start().

Note that device commands are not read-only: write_key_config(), set_sleep_timeout(), shutdown_device() and start_dfu_upgrade() all change device state. See Security notes.

Features

Feature	What it pulls in	Default?
`usb`	`hidapi 2.6` (USB HID) + `cpal 0.15` (USB Audio capture)	✅
`ble`	`btleplug 0.12` (BLE GATT) + `futures-util`	✅
`test-mode`	Factory test commands (e.g. `shutdown_device(0x5E)`)	✅

BoardDeviceBlocking needs no feature flag — it ships with usb or ble.

To use only the protocol layer with no hardware deps:

reai-board-sdk = { version = "0.2", default-features = false, features = ["test-mode"] }

Rust version

rust-version = "1.87" (uses usize::is_multiple_of in a couple of hot-path code sites and examples).

Architecture

                    BoardDevice (high-level API: open / start / subscribe)
                          │
            ┌─────────────┴─────────────┐
            ▼                           ▼
       HotplugManager              (USB) UsbAudioCapture
   (USB + BLE auto-connect /           │ cpal UAC → PcmSink (f32)
    auto-reconnect)                    │
            │
   ┌────────┼────────────────┐
   ▼        ▼                ▼
 HidMonitor  KeyStateAggregator  VendorGattClient
 (Config / Consumer parser)     (BLE GATT: scan / connect / notify)
   │                          │           │
   └──────── broadcast::Sender<BoardEvent> ┘
                    │
              Consumers subscribe()

Event decoupling: every internal module reports through one broadcast::Sender<BoardEvent>. The high-frequency audio stream uses a separate AudioFrameSink / PcmSink trait so semantic events are never drowned out by 16 kHz PCM frames.

Four-layer split

Layer	Module path	Purpose
`kernel`	`protocol_hid` / `protocol_gatt` / `event` / `sink` / `msbc` / `key_aggregator` / `types` / `error`	Pure logic. No threads, no I/O.
`runtime`	`device` / `hotplug` / `usb` / `ble` / `usb_capture`	tokio async orchestration (lifecycle / hotplug / USB / BLE I/O).
`facade`	`device` / `events` / `blocking`	`BoardDevice` high-level entry point, the three event entry points, and the sync command bridge.
`tool`	`parse` / `msbc_file`	I/O-aware helpers (parse device info from HID buffer, decode mSBC file).

runtime and facade require at least one of usb / ble. With both off, only kernel and tool are available — useful for embedding the protocol layer without any hardware dependency.

Events (`BoardEvent`)

A single enum — one match covers everything:

pub enum BoardEvent {
    Connection(ConnectionEvent),   // connect / disconnect (with reason)
    Reconnect(ReconnectEvent),     // reconnect-state machine changes
    KeyPress(KeyPressEvent),       // single key down / up
    ComboKey(ComboKeyEvent),       // multi-key combo (≥2 keys held simultaneously)
    AiVoiceKey(AiVoiceKeyEvent),   // physical "AI voice" key (key #6)
    ModeChange(ModeChangeEvent),   // dial switch: YOLO / PLAN / CHAT
    DeviceInfo(DeviceInfo),        // info read on demand or polled
    Error(ErrorEvent),             // non-fatal (e.g. single-command timeout)
    #[cfg(feature = "test-mode")]
    FactoryKey(FactoryKeyEvent),   // factory physical-key test event (firmware v1.58+)
}

Each variant is #[derive(Serialize)] with #[serde(tag = "type")] so it serializes naturally to a JSON envelope if you need to forward events to a WebSocket bridge or another process.

Audio sinks

pub trait PcmSink: Send + Sync {
    fn on_pcm(&self, samples: &[f32]);     // 16 kHz mono f32 — unified across USB and BLE
}

pub trait AudioFrameSink: Send + Sync {
    fn on_msbc_frame(&self, frame: &[u8]); // raw 57-byte mSBC frames (BLE only, before decoding)
}

USB Audio is captured directly via cpal and forwarded to PcmSink.
BLE mSBC frames are decoded to f32 by the built-in MsbcDecoderSink and forwarded to the same PcmSink you registered.

Built-in sinks: MsbcDecoderSink (mSBC → f32), CountingSink (frame / byte statistics). set_pcm_sink() accepts Arc<dyn PcmSink>; call it before start().await.

Device commands

All command methods are async on BoardDevice and sync on BoardDeviceBlocking. They auto-pick USB HID or BLE GATT transport based on the current connection.

Device info & work mode

device.read_device_info().await?;   // CMD 0x13: mode / MAC / firmware / battery / chip_id
device.get_work_mode().await?;      // CMD 0x12 + 0xC9 — reads the lever's current position

Key configuration

device.read_key_config().await?;          // CMD 0x15
device.write_key_config(&config).await?;  // CMD 0x16

Bindings blob — a 4 KB application-defined config block persisted on the keyboard, transferred in fragments with a CRC16 check. BlobRead distinguishes never written (safe to initialize silently) from written but corrupt (raise it to the user — never overwrite blindly), and reports Unsupported on older firmware that does not answer these commands.

device.read_bindings_blob().await?;         // CMD 0x69
device.write_bindings_blob(&payload).await?; // CMD 0x6A — payload ≤ 3830 bytes

Power & sleep

device.get_silent_record().await?;      // CMD 0x61 (firmware v1.41+)
device.set_silent_record(true).await?;  // CMD 0x62 — returns the effective value
device.get_sleep_timeout().await?;      // CMD 0x63 (firmware v1.51+, idle / connected seconds)
device.set_sleep_timeout(SleepTimeout::new(120, 900)).await?;  // CMD 0x64
device.notify_app_online(true).await?;  // CMD 0x65 (firmware v1.53+)
device.get_app_online().await?;         // CMD 0x66
device.get_open_url().await?;           // CMD 0x67
device.set_open_url("https://…").await?; // CMD 0x68
device.shutdown_device(true).await?;    // CMD 0x5E (test-mode only)

BLE connection management

device.scan_ble_devices(timeout).await?;  // list nearby boards
device.connect_ble("REAI_VB_XXXX");       // target a specific one
device.disconnect_ble().await?;
device.disconnect().await?;               // CMD 0x60 — ask the device to drop the link

Firmware upgrade & recovery — the DFU path is USB-only.

device.start_dfu_upgrade(path, |p| { /* progress */ }).await?;
device.cancel_dfu_upgrade();              // aborts within one ≤250 B transfer cycle

// If a board is left stranded in DFU mode (e.g. the host died mid-upgrade):
if device.is_stuck_in_dfu().await? {
    device.recover_from_dfu().await?;     // kicks it back to normal mode
}

recover_from_dfu() only touches the staging partition, never the main application partition — it cannot brick a device that is already stuck.

Factory physical-key test (test-mode, firmware v1.58+) — a 15-second lease; renew every 5 s and release explicitly.

device.set_factory_key_test(true, session).await?;  // CMD 0x6C; events arrive as 0x6D

Examples

Run from the crate root:

cargo run --example usb_probe        # USB HID + USB Audio
cargo run --example ble_probe        # BLE scan + connect + audio + keys
cargo run --example device_demo      # read device info / key config / round-trip write
cargo run --example listen_demo      # both event facade flavors side-by-side

All examples need a board connected; they print events to stdout.

Security notes

This crate has no built-in authentication or transport-layer encryption. If you build a service that exposes the device commands over a network, you are responsible for:

binding only to 127.0.0.1 (or a Unix socket) on the host that owns the hardware;
putting a reverse proxy with TLS + token authentication in front of any remote surface;
rate-limiting the DFU endpoint (start_dfu_upgrade will reflash the device — it is not idempotent).

shutdown_device() and start_dfu_upgrade() are destructive. There is no second-factor prompt — whoever can call them owns the device.

write_key_config() and write_bindings_blob() are not destructive but they persist on the keyboard: a bad write survives reboots and unplugging, and recovering means writing known-good data back. Read before you write, and treat a BlobRead that comes back corrupt as a prompt for the user rather than a licence to overwrite.

Contributing

Issues and PRs are welcome at github.com/ReAI-com/reai-board-sdk. For the product itself, see b.reai.com.

Local development loop:

cargo build --all-features
cargo test  --all-features
cargo clippy --all-features --all-targets -- -D warnings
cargo doc   --no-deps --all-features

License

One caveat worth reading before you ship:

The ble feature pulls in msbc-decoder, a separate crate in this repository that decodes the mSBC audio arriving over BLE. That decoder is a bit-exact translation of FFmpeg's libavcodec/sbcdec.c, so it inherits FFmpeg's licence and is distributed under LGPL-2.1-or-later, not MIT.

It lives in its own crate precisely so the boundary is explicit:

Your build	mSBC decoder compiled in?	Effective licence
`default-features = false` (protocol only)	no	MIT
`features = ["usb"]` — USB HID + USB Audio	no	MIT
`features = ["ble"]` or default	yes	MIT + LGPL-2.1-or-later

If you only talk to the board over USB, no LGPL code reaches your binary. If you need BLE audio and LGPL is a problem for your product, talk to your legal team, or supply your own mSBC decoder through the AudioFrameSink trait — set_audio_frame_sink() hands you the raw 57-byte frames before any decoding happens.
