oxframe 0.20.2

Procedural animation in Rust: scenes are coroutines, frames are await points
Documentation

oxframe-sdk

crates.io docs.rs license playground

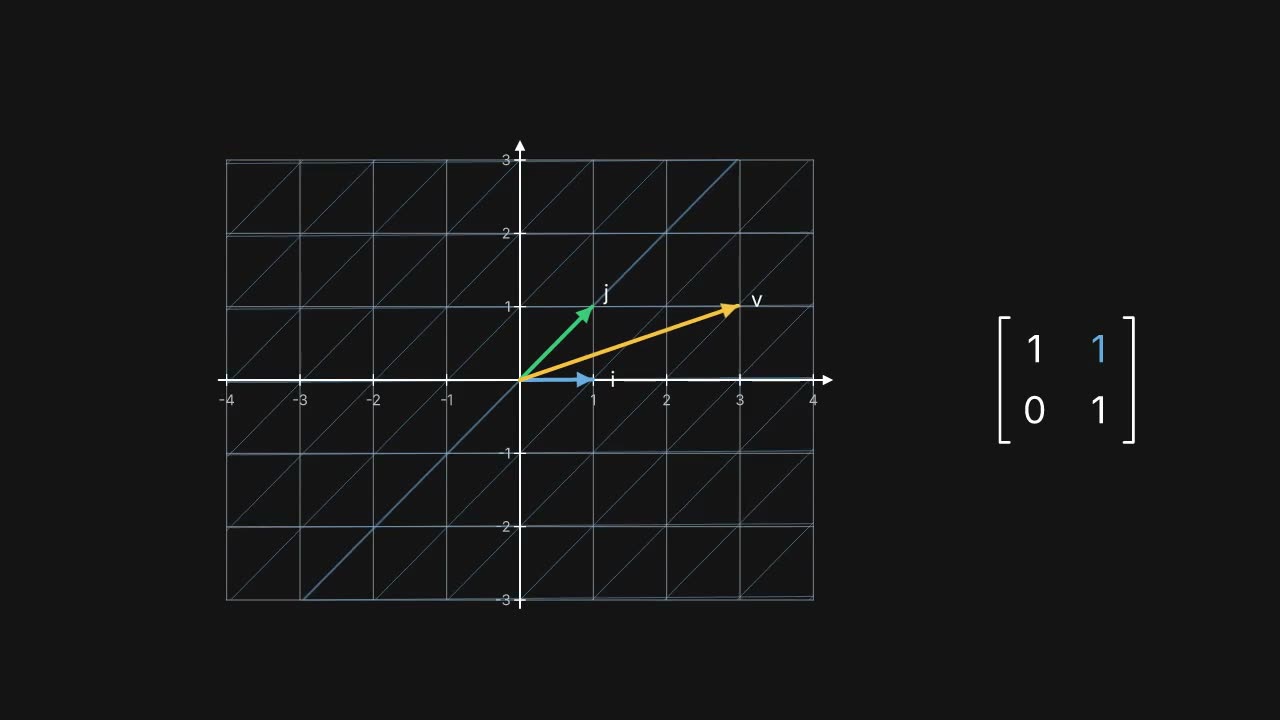

The oxframe showreel: functions on axes, a lit 3D cube, a linear map and a shader sea, every frame drawn by oxframe

The reel on oxframe.dev, made by examples/src/showreel.rs.

Status: oxframe is under very active development. The API is not stable yet and may change from version to version. Pin the exact version in your Cargo.toml and check the changelog before upgrading.

The Rust SDK of oxframe.

Procedural animation in Rust, modelled after Motion Canvas: a scene is an async fn, and every .await on an animation is a frame boundary.

use oxframe::prelude::*;

#[oxframe::scene]
async fn intro(view: View) {
    let square = view.add(Rect::new().size(200.0).x(-300.0).fill(color!("#e13238")));
    all((
        square.x().to(300.0, 1.0),
        square.radius().to(100.0, 1.0),
    ))
    .await;
}

fn main() {
    Project::new("intro").scene(intro()).main();
}

cargo run --release -p oxframe-examples --bin intro -- render --out out/intro

With an AI agent

oxframe is made for agents that write the video and check their own frames (oxframe check).

npx skills add oxygenframe/oxframe-sdk     # Cursor, Copilot, Codex, Claude Code and others

In Claude Code, the plugin adds the skill and the oxframe mcp server:

/plugin marketplace add oxygenframe/oxframe-sdk
/plugin install oxframe@oxframe

Both need the CLI: cargo install oxframe-cli (or the install script). Every release gets a video of its notes from release-video-action, made with oxframe.

Crates

Crate Purpose wasm32
oxframe-core signals, tweens, Ease, Lerp (incl. path morphing, gradients), deterministic executor, all / sequence / spawn / wait_for / wait_until, seeded random yes
oxframe-2d scene graph: Rect, Circle (arcs, pies), Polygon, Star, Path, Line (smooth, arrows), Txt (rich spans, glyph morph), Code (highlighting, focus), Img (PNG/JPEG/SVG), Layout (flexbox/grid via taffy), Grid, Group; gradients, dashes, clip, blend modes, blur, shadow, z-index, anchor yes
oxframe-text text layout (parley) and glyph outlines (skrifa), embedded Inter and JetBrains Mono, syntax highlighter yes
oxframe-render Renderer trait; tiny-skia CPU backend; vello GPU backend (native and WebGPU into an OffscreenCanvas) yes
oxframe-export ffmpeg pipe (mp4, webm, ProRes 4444, PNG), audio muxing, waveform no
oxframe-preview protocol session; native WebSocket server session only
oxframe-protocol Command / Event, meta.json schema, TS types via ts-rs yes
oxframe-macros #[oxframe::scene], color!, ease!, tune! —
oxframe facade: prelude, Project, Engine, project CLI (render, preview, info), browser API (wasm feature) yes

Examples

cargo run --release -p oxframe-examples --bin <name> -- render|preview|info with intro, text, morph, layout, chart, particles, showcase, effects, shapes, typography, benchmark.

Guarantees

  • Deterministic. The same code and meta.json give byte-identical frames: fixed dt = 1/fps, single-threaded executor, no wall clock, ordered maps only.
  • Exact timing. A tween that ends between frames hands its exact end time to the next one, so chains of non-frame-aligned durations do not drift.
  • meta.json is the source of truth for markers (wait_until), named eases (ease!) and tunables (tune!); code only supplies defaults, which are recorded on first run. Unknown keys are preserved; output is sorted and 2-space indented.

Development

cargo test --workspace
cargo test --release -p oxframe-examples --test acceptance   # M0 acceptance, seek budget
cargo bench -p oxframe-examples --bench seek
cargo test -p oxframe-protocol --features ts                 # writes crates/oxframe-protocol/bindings
cargo test -p oxframe-render --features gpu --test golden    # CPU and GPU against golden frames
OXFRAME_UPDATE_GOLDEN=1 cargo test -p oxframe-render --test golden   # regenerate references (CPU)

License

Licensed under either of MIT or Apache-2.0 at your option.
