Minion Engine

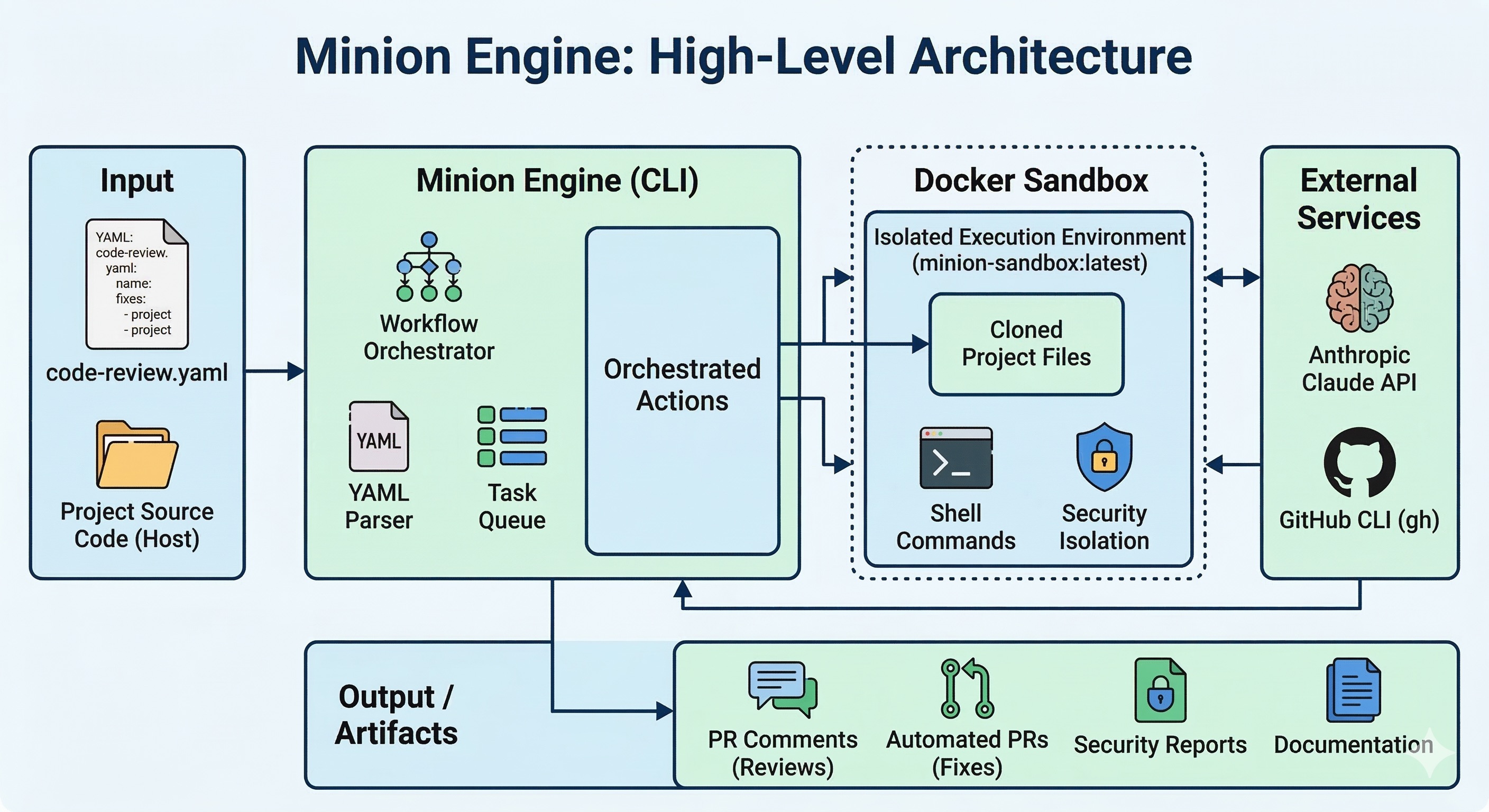

Minion Engine High-Level Architecture

Automate code review, bug fixing, and PR creation with AI — defined in YAML, executed in Docker.

Minion Engine is a CLI tool that runs multi-step AI workflows. You define what you want in a YAML file, and it orchestrates everything: shell commands, Claude AI calls, conditional logic, and parallel execution — all inside an isolated Docker sandbox.

You write YAML → Minion runs AI workflows → Results appear as PR comments, fixes, reports

Why?

Without Minion Engine, reviewing a PR means:

  • Open the PR, read each file manually
  • Switch context between Python, TypeScript, Rust conventions
  • Remember to check for security issues, type safety, error handling
  • Write your findings as a comment

With Minion Engine, one command does it all:

minion execute code-review.yaml -- 42

Every changed file is reviewed with language-specific criteria (Python gets Python rules, TypeScript gets TypeScript rules), the project architecture is considered, and a structured report is posted as a PR comment.

Typical execution times:

Workflow Time What affects it
code-review 2–5 min Number of changed files, size of diffs
fix-issue 8–15 min Complexity of the issue, number of lint/test retry loops
security-audit 3–6 min Number of source files, parallelism level
generate-docs 4–8 min Number of source files to document

Execution time depends on several factors:

  • Docker sandbox setup (1–5 min on first run per session): creating the container, copying your project files in, and initializing git. Larger projects with more files take longer to copy.
  • API response time (10–60s per call): each chat or agent step makes a round-trip to the Claude API. Longer prompts and larger context windows increase latency.
  • Retry loops: workflows like fix-issue run lint and test gates in a repeat scope — if tests fail, the agent fixes and retries (up to max_iterations). Each iteration adds a full agent + cmd cycle.
  • Parallelism vs rate limits: map steps with parallel: 5 can trigger API rate limits (429), which currently causes failures. Lower parallelism is more reliable.
  • First run: the Docker image build (minion-sandbox:latest) adds ~2 minutes the very first time. Subsequent runs use the cached image.

Quick Start

# 1. Install (Rust toolchain required)
cargo install minion-engine

# 2. Interactive setup — checks requirements and configures API keys
minion setup

# 3. Go to your project and run a workflow
cd /path/to/your-project
minion execute code-review.yaml -- 42   # Review PR #42

That's it. Docker image is built automatically on first run. No manual setup needed.

Install with Slack Bot

# Install with Slack integration
cargo install minion-engine --features slack

# Run interactive setup (includes Slack configuration)
minion setup

# Start the bot
minion slack start

What Can It Do?

Workflow What it does
code-review Review a PR — detects language per file, loads language-specific prompts, posts findings as PR comment
fix-issue Fetch a GitHub issue → plan → implement → lint → test → create PR
fix-test Detect failing tests → analyze → fix → verify — repeat until green
security-audit Scan codebase for OWASP vulnerabilities with AI analysis
generate-docs Generate documentation from source code

All workflows are YAML files you can customize or create from scratch.

Prerequisites

Requirement How to get it Notes
Rust toolchain rustup.rs For cargo install
ANTHROPIC_API_KEY console.anthropic.com export ANTHROPIC_API_KEY="sk-ant-..."
Docker Desktop docker.com Sandbox runs workflows in isolation
gh CLI cli.github.com gh auth login — GH_TOKEN is auto-detected

Docker image auto-build: The first time you run a workflow, Minion automatically builds the sandbox image (minion-sandbox:latest). This takes ~2 minutes once and never needs to be repeated.

Features

🐳 Docker Sandbox (default)

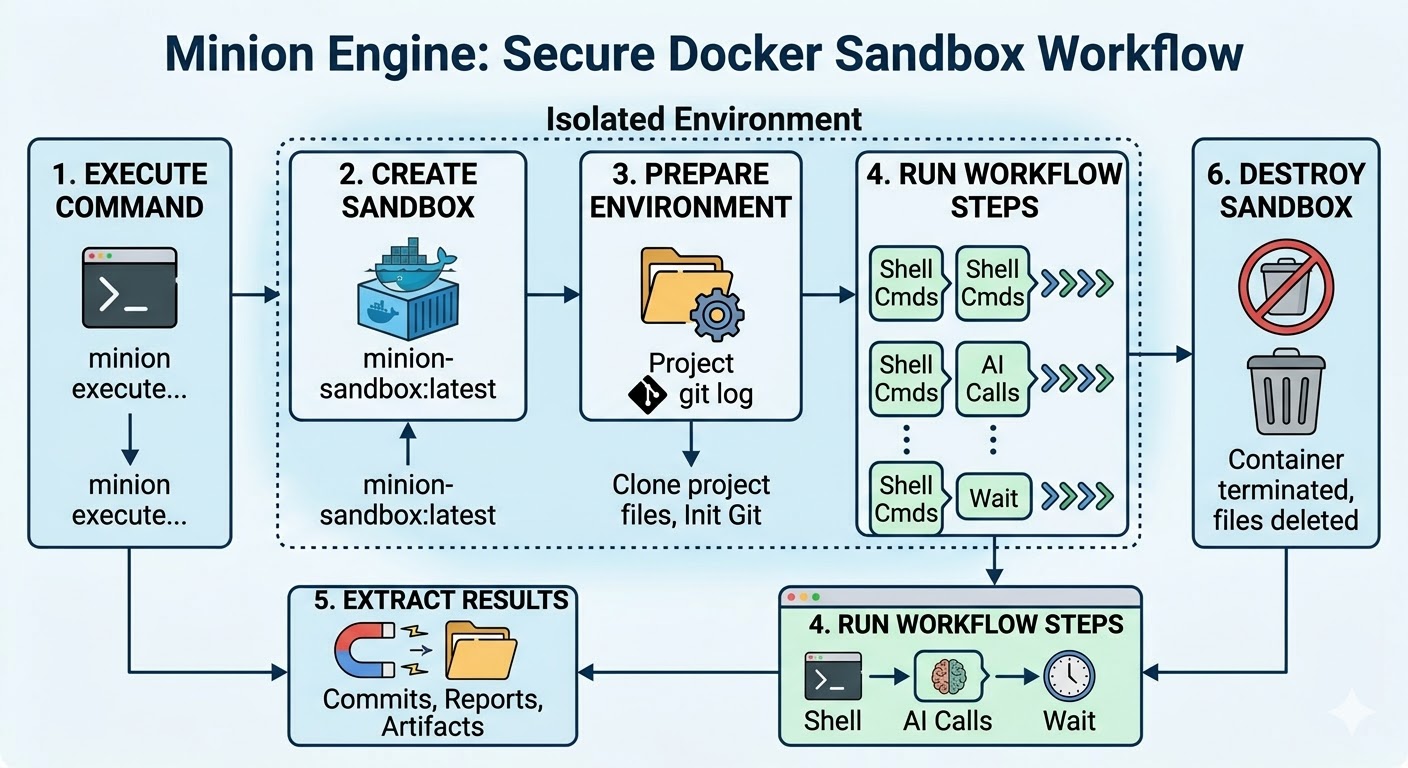

Secure Docker Sandbox Workflow

Every workflow runs inside an isolated Docker container. Your project is copied in, the AI works in isolation, and only the results come back. If anything goes wrong, the container is destroyed — zero impact on your project.

🔐 Secure API Proxy

API keys never enter the container. Minion runs a host-side reverse proxy that intercepts API calls from inside the sandbox and injects authentication headers on-the-fly:

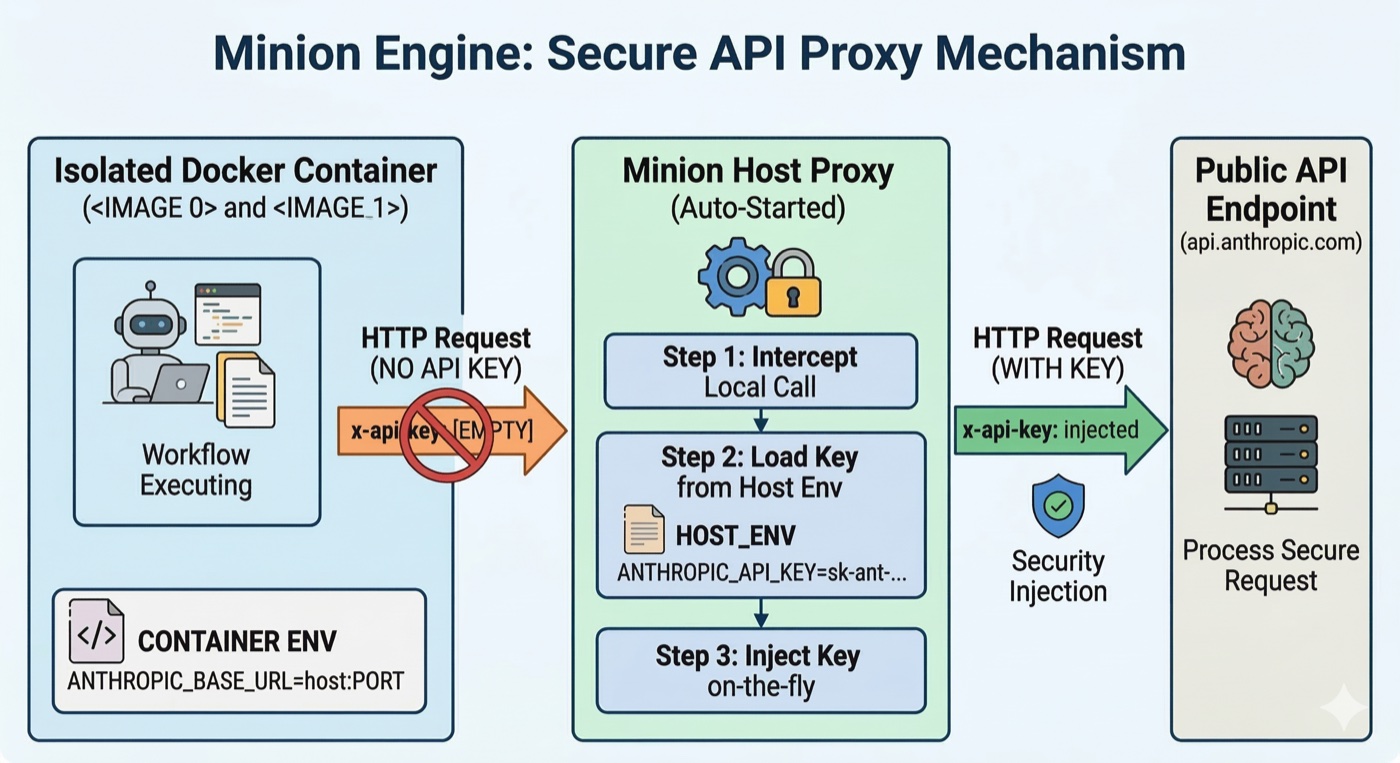

Secure API Proxy Mechanism

  • The container only sees ANTHROPIC_BASE_URL=http://host.docker.internal:<port>
  • ANTHROPIC_API_KEY stays on the host machine — never exposed as a container env var
  • Proxy starts automatically with the workflow and stops when it completes
  • Zero configuration required — works out of the box with cargo install
minion execute code-review.yaml -- 42        # Sandbox ON (default)
minion execute code-review.yaml --no-sandbox -- 42  # Run locally instead

🔍 Language-Aware Code Review

The code review workflow detects the language of each changed file and applies language-specific review criteria:

  • Python → checks for bare except:, missing type annotations, mutable default arguments
  • TypeScript → checks for any types, missing await, unhandled promise rejections
  • Rust → checks for unwrap() in production, unnecessary clones, unsafe blocks
  • Java → checks for resource leaks, null safety, checked exceptions
  • Falls back to generic review for other languages

📐 Architecture Context

If your project has a CLAUDE.md, ARCHITECTURE.md, or README.md, the code review workflow reads it automatically and uses it to evaluate whether changes align with your project's design.

🎯 Stack Detection & Prompt Registry

Minion detects your project's tech stack (Rust, Python, TypeScript, React, Java, etc.) from file markers (Cargo.toml, package.json, requirements.txt) and uses it to select the right prompts and tools.

CLI Reference

minion execute

minion execute <workflow.yaml> [flags] -- [target]
Flag Description
--no-sandbox Disable Docker sandbox (sandbox is ON by default)
--verbose Show all step outputs
--quiet Only show errors
--json Output result as JSON
--dry-run Show what steps would run without executing
--var KEY=VALUE Set a workflow variable (repeatable)
--timeout SECONDS Override global timeout
--resume STEP Resume from a specific step
# Examples
minion execute code-review.yaml -- 42              # Review PR #42
minion execute fix-issue.yaml --verbose -- 247     # Fix issue with verbose output
minion execute fix-test.yaml -- 7                  # Fix failing tests for PR #7
minion execute security-audit.yaml                 # Security audit (no target needed)
minion execute workflow.yaml --var mode=strict -- 5 # Pass variables

minion init

minion init <name> [--template <template>]

Creates a new workflow from a built-in template.

Templates: blank, fix-issue, code-review, security-audit

minion validate

minion validate <workflow.yaml>

Parses and validates a workflow without executing it.

minion list

minion list

Lists workflows found in the current directory, ./workflows/, and ~/.minion/workflows/.

minion inspect

minion inspect <workflow.yaml>

Shows config layers, scopes, step dependency graph, and dry-run summary.

minion config

Manage default configuration (model, provider, timeouts).

minion config show          # Show current effective configuration (embedded + user + project merged)
minion config init          # Create or edit user-level defaults (~/.minion/defaults.yaml)
minion config set KEY VALUE # Set a config value (dot notation)
minion config path          # Show where config files are located
# Examples
minion config set chat.model claude-opus-4-20250514    # Change the default AI model
minion config set chat.temperature 0.5             # Adjust creativity
minion config set global.timeout 600s              # Increase timeout
minion config set agent.model claude-sonnet-4-20250514   # Change agent model

Config priority (lowest → highest):

  1. Embedded defaults — compiled into the binary, always available
  2. User-level~/.minion/defaults.yaml (created with minion config init)
  3. Project-level.minion/config.yaml in your project root
  4. Workflow YAMLconfig: section in each workflow file
  5. Step inlineconfig: on individual steps

New users get sensible defaults automatically via cargo install — no config files needed.

minion setup

minion setup

Interactive setup wizard — checks requirements, configures API keys, and optionally sets up Slack bot credentials. Saves config to ~/.minion/config.toml.

minion slack start (requires --features slack)

minion slack start [--port 9000]

Starts the Slack bot server. Reads config from ~/.minion/config.toml or environment variables.

Workflow YAML Format

name: my-workflow
version: 1
description: "What this workflow does"

# Config is optional — sensible defaults are embedded in the binary.
# Only specify overrides for what's different from defaults.
config:
  global:
    timeout: 600s           # Override default 300s
  chat:
    temperature: 0.1        # Override default 0.2

steps:
  - name: get_info
    type: cmd
    run: "gh issue view {{ target }} --json title,body"

  - name: analyze
    type: chat
    prompt: |
      Analyze this issue and suggest a fix:
      {{ steps.get_info.stdout }}

  - name: report
    type: cmd
    run: "echo 'Analysis complete'"

Step Types

Type Description
cmd Execute a shell command
agent Invoke Claude Code CLI
chat Direct Anthropic API call
gate Evaluate a condition, control flow
repeat Run a scope repeatedly (retry loop)
map Run a scope once per item in a list
parallel Run nested steps concurrently
call Invoke a scope once

Template Variables

Variable Description
{{ target }} Target argument passed after --
{{ steps.<name>.stdout }} stdout of a cmd step
{{ steps.<name>.stderr }} stderr of a cmd step
{{ steps.<name>.exit_code }} Exit code of a cmd step
{{ steps.<name>.response }} Response from a chat/agent step
{{ scope.value }} Current item in a map/repeat scope
{{ scope.index }} Current iteration index (0-based)
{{ args.<key> }} Variable set via --var KEY=VALUE
{{ prompts.<name> }} Load a prompt from the prompt registry

Example Output

▶ code-review
  🔒 Sandbox mode: FullWorkflow
  🐳 Creating Docker sandbox container…
  🔒 Sandbox ready — container 1.3s, copy 12.4s, git 98.7s (total 112.4s)
  ✓ get_diff (3.2s)
  ✓ changed_files (1.8s)
  ✓ check_files (0.0s)
  ✓ file_reviews (45.3s)    ← map scope: reviews each file with language-specific criteria
  ✓ summary (28.1s)          ← chat step: synthesizes all reviews into a report
  ✓ post_comment (2.1s)
  ✓ report (0.3s)
  📦 Copying results from sandbox…
  🗑️  Sandbox destroyed

✓ Done — 7 steps in 193.2s

Slack Bot Integration

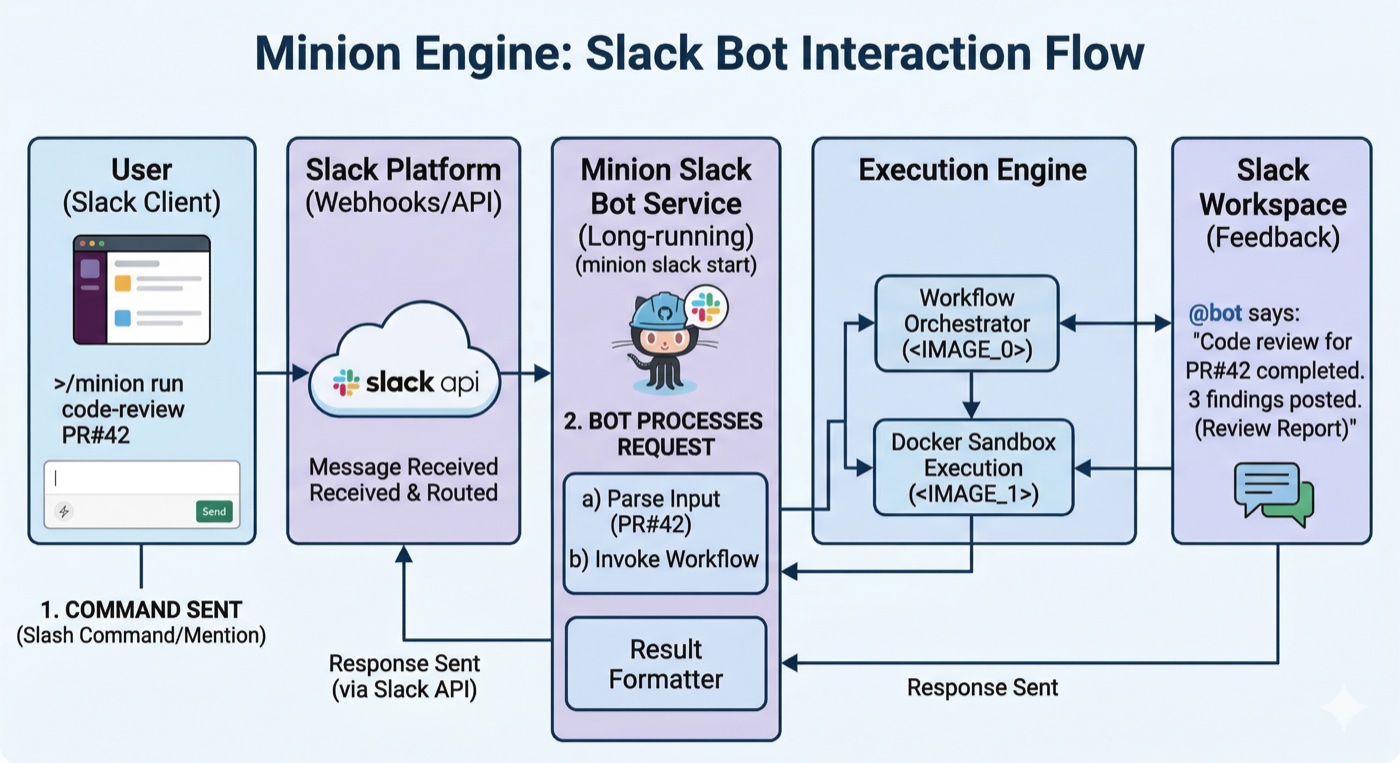

Slack Bot Interaction Flow

Trigger Minion workflows from Slack by mentioning the bot:

@YourBot review pr #42
@YourBot fix issue https://github.com/org/repo/issues/10
@YourBot security audit myproject
@YourBot generate docs myproject

Step-by-step Setup

1. Create a Slack App

  1. Go to https://api.slack.com/appsCreate New AppFrom Scratch
  2. Name it (e.g., "Minion Engine") and select your workspace

2. Configure Permissions

Go to OAuth & PermissionsBot Token Scopes and add:

Scope Purpose
app_mentions:read Detect @YourBot mentions
chat:write Post replies in channels
channels:history Read channel messages
channels:read List channels

Click Install to Workspace and copy the Bot User OAuth Token (xoxb-...).

3. Configure Event Subscriptions

Go to Event Subscriptions → toggle ON.

Under Subscribe to bot events, add:

  • app_mention

For the Request URL, you need a public endpoint. Use ngrok for development:

# Install ngrok (https://ngrok.com)
brew install ngrok   # macOS
# or download from https://ngrok.com/download

# Start a tunnel to port 9000
ngrok http 9000

Copy the ngrok URL (e.g., https://abc123.ngrok-free.app) and set the Request URL to:

https://abc123.ngrok-free.app/slack/events

Wait for the "Verified" checkmark, then click Save Changes.

Tip: Use ngrok http 9000 --domain your-name.ngrok-free.app for a stable domain (free ngrok accounts get one static domain).

4. Get the Signing Secret

Go to Basic InformationApp Credentials → copy the Signing Secret.

5. Install and Configure Minion

# Install with Slack support
cargo install minion-engine --features slack

# Run setup wizard — it will ask for your Slack tokens
minion setup

The setup wizard saves your config to ~/.minion/config.toml:

[core]
anthropic_api_key = "sk-ant-..."
workflows_dir = "./workflows"

[slack]
bot_token = "xoxb-..."
signing_secret = "2d91c..."
port = 9000

Or set environment variables directly:

export SLACK_BOT_TOKEN="xoxb-..."
export SLACK_SIGNING_SECRET="2d91c..."

6. Start the Bot

# Make sure ngrok is running: ngrok http 9000
minion slack start

7. Invite the Bot

In your Slack channel:

/invite @YourBot

Then mention it:

@YourBot review pr #42

Supported Commands

Slack Message Workflow
@bot fix issue #10 or @bot fix issue <url> fix-issue.yaml
@bot review pr #42 or @bot review pr <url> code-review.yaml
@bot security audit <target> security-audit.yaml
@bot generate docs <target> generate-docs.yaml
@bot fix ci <pr-url> fix-ci.yaml

Project Structure

src/
  cli/          # CLI commands (execute, validate, list, init, inspect, setup)
  engine/       # Core engine — step execution, context, templates
  workflow/     # YAML parsing, validation
  steps/        # Step executors (cmd, agent, chat, gate, repeat, map, parallel)
  sandbox/      # Docker sandbox management
  prompts/      # Stack detection and prompt registry
  config/       # 5-layer config resolution (embedded → user → project → workflow → step)
  slack/        # Slack bot integration (optional, --features slack)
  plugins/      # Dynamic plugin system
workflows/      # Example workflow YAML files
prompts/        # Language-specific prompt templates

License

MIT
