gtcaca

Safe, idiomatic Rust bindings for GTCaca, a libcaca-based terminal UI toolkit written in C — think Wireshark-grade panels, tables, trees, charts and a mind map, rendered in the terminal.

This is the high-level crate. It wraps the raw FFI in gtcaca-sys with widget handles, builder-style constructors, closure key callbacks, and a Widget trait that makes every widget paintable and focusable the same way. The whole toolkit is single-threaded (one global context, one event loop), so the context and every widget are !Send/!Sync.

See it

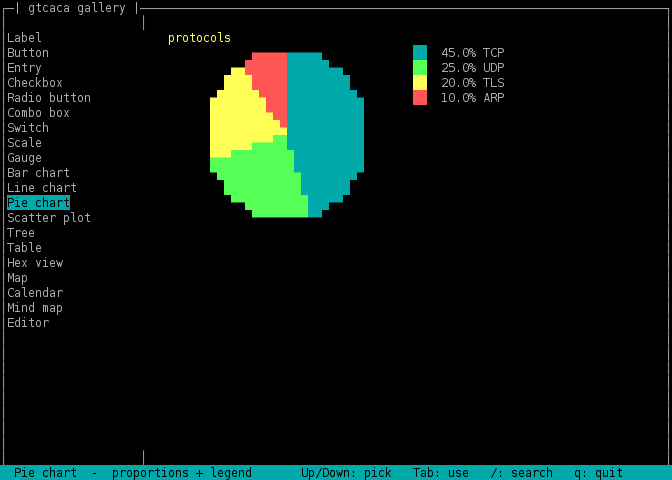

The gallery example — browse and drive every widget (/ filters the list):

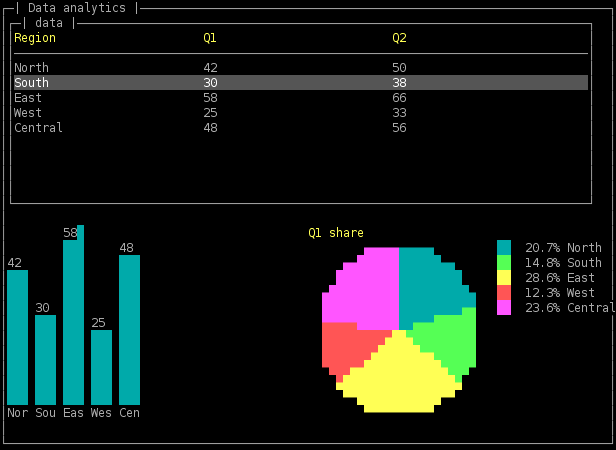

The spreadsheet tutorial — a table with a live histogram and pie chart:

The mindmap tutorial — a FreeMind viewer/editor:

Requirements

libcaca development files, found at build time via pkg-config:

Hello, world

use gtcaca::{key, Application, Button, Entry, Gtcaca, Label, Window};

fn main() -> Result<(), gtcaca::Error> {
    let ctx = Gtcaca::init()?;                 // opens the terminal display

    let app = Application::new(&ctx, "Demo");
    let win = Window::fullscreen(&app, None);

    Label::new(&win, "Name:", 5, 2);
    let entry = Entry::new(&win, 12, 2, 20);
    let quit = Button::new(&win, "Quit", 5, 4);

    quit.on_key(|k| if k == key::RETURN { gtcaca::quit(); true } else { false });

    ctx.run();                                 // blocking event loop
    println!("you typed: {}", entry.text());
    Ok(())
}

Runnable examples

Run each in a real terminal:

The spreadsheet and mindmap examples are written as tutorials — read them top to bottom.

The widgets

Every widget is created with T::new(&parent, …), configured with setters, and (in a custom loop) painted with .paint(). All implement the Widget trait, which adds send_key, set_focus, paint, and geometry.

Containers & layout — Application, Window (fullscreen / centered / centered_fraction, plus content(margin) for the inner rectangle), Frame, Separator, Expander, Tabs.

Inputs — Button, Entry, Checkbox, Radiobutton, Combobox, Switch, Scale, Spinbutton, Textview, Editor.

Data — Table (virtual, via a TableModel), Tree (via a TreeModel, with select to sync from elsewhere), Textlist (with built-in / search), Hexview (byte cursor + range highlight), Mindmap (FreeMind-style tree).

Charts & analytics — Barchart (histograms / counts), Piechart (round pie or donut with legend), Scatter (auto-fitting x/y axes), Linechart (XY series), Sparkline (inline trend), Gauge (single percentage), Segdisplay, Map, Calendar.

Dialogs & chrome — Menu, Statusbar, Dialog, Filechooser, Image.

Colours for the chart/marker APIs are in the color module (color::CYAN, …); special keys are in key.

Two ways to run the loop

Toolkit loop — build widgets, register on_key closures, call ctx.run(). Simplest for form-style apps (see hello).

Custom loop — drive it yourself for full control (the pattern carscal and the tutorials use):

# use gtcaca::Widget;
# fn f(ctx: &gtcaca::Gtcaca, table: &impl Widget) {
loop {
    ctx.clear();          // wipe the canvas
    table.paint();        // paint exactly the widgets you want …
    ctx.flush();          // … and flush to the terminal

    let Some(k) = gtcaca::poll_key(-1) else { continue };   // block for a key
    match k {
        k if k == b'q' as i32 => break,
        _ => { table.send_key(k); }                         // route it to a widget
    }
}
# }

paint + clear/flush let you show only what you choose (one selected widget, say), where ctx.redraw() paints the whole widget list.

Building a data view

Table and Tree are virtual: you implement a model and the widget pulls cells/nodes on demand, so they scale to huge data without copying.

use gtcaca::{Table, TableModel, Window};

struct Csv(Vec<Vec<String>>);
impl TableModel for Csv {
    fn row_count(&self) -> i64 { self.0.len() as i64 }
    fn headers(&self) -> Vec<String> { vec!["A".into(), "B".into()] }
    fn cell(&self, row: i64, col: i32) -> String {
        self.0[row as usize][col as usize].clone()
    }
}

# fn f(win: &Window) {
let table = Table::new(win, 0, 0, 40, 20, Box::new(Csv(vec![])));
# }

Summarise a column with a chart — a histogram and its proportions:

# use gtcaca::{Barchart, Piechart, color, Window};
# fn f(win: &Window) {
let values = [42.0f32, 30.0, 58.0, 25.0];
let labels = ["North", "South", "East", "West"];

let bars = Barchart::new(win, 0, 0, 40, 10);
bars.set_data(&values, &labels);          // one labelled bar per value
bars.set_color(color::CYAN);

let pie = Piechart::new(win, 42, 0, 30, 10);
pie.set_data(&values, &labels);           // the same numbers as slices
pie.set_title("share");
# }

The full C API

Every wrapped widget is one call away from its raw functions, and the entire C API is available (unsafe) through the re-exported gtcaca-sys FFI:

use gtcaca::ffi;
unsafe { /* call any gtcaca_* function directly */ }

License

Public Domain (Unlicense), same as GTCaca.
