ferroplan

A fast, data-parallel PDDL planner in Rust — a deterministic planning core for the age of AI.

The bet: an LLM should be the author and supervisor of a planner, not its runtime. The same reason you don't ask a model to add a column of numbers — you have it emit code that does the arithmetic deterministically, and for free — applies one level up: don't ask an LLM to be the planner for a whole village of agents. Have it author a PDDL domain that then plans deterministically, cheaply, and inspectably at scale, and let it only nudge that domain at runtime. PDDL is the auditable interface between your intent, the model's authoring, and a fast solver — and ferroplan is that solver.

Why PDDL, not prompt-spaghetti:

• Cost — a solved domain plans essentially for free; an LLM call per decision per agent does not.
• Determinism — same problem, same plan; you can regression-test it.
• Inspectability — you can read a domain and an axiom; you cannot read a model's weights.
• Scale — a village of agents each replanning is tractable for a fast solver, not as a wall of LLM calls.

▶ Try it live in your browser — pick a built-in example or paste your own PDDL; it plans entirely client-side via WebAssembly, no install. There's also a browser visualizer + block editor.

ferroplan is a from-scratch reimplementation of the FF family of planners with a data-oriented core (bitset states, structure-of-arrays / CSR operator tables), enforced hill-climbing (EHC) with a best-first fallback, parallel grounding and parallel heuristic evaluation, plus an SGPlan-style partition-and-resolve mode, PDDL3 preference/metric optimization, and PDDL2.1 temporal planning (durative actions). It ships both a library (with a structured, JSON-serializable API) and the ff command-line binary — a drop-in for Metric-FF's ff -o domain -f problem.

On classical and ADL benchmarks it runs within ~1.4× of the heavily-optimized C Metric-FF (EHC reaches goals in dozens of evaluations, not thousands); numeric trails and IPC-5 preference quality is competitive-not-winning — see Benchmarks.

Status: v0.7.0 — ferroplan + ferroplan-cli are on crates.io. APIs may shift before 1.0.

What's new in 0.7.0 — Trajectories: enforce the constraint, price the preference. The oldest fence is retired: PDDL3 (:constraints ...) blocks — rejected-by-design since 0.4.1 — are now ENFORCED on the classical path. The six untimed modal operators compile into monitor automata riding every action; hard constraints become goal conjuncts, soft (preference name ...) constraints are priced through the existing metric stack with zero optimizer changes, and the independent verifier folds the ORIGINAL constraint semantics over every replay (now grounding quantified bodies — exact on 5 of 6 simple-preferences domains too). Measured proof: the IPC-5 qualitative-preferences track is vendored (5 domains × 8 instances) — 36/40 instances produce a plan and a metric (reported == verified exact on all 11 oracle-checked instances), every gap has a named reason, and quadratic forall-constraints ground tractably via constraint-side static simplification (qualitative scoreboard, 0.7 roadmap). Timed operators and the temporal path still reject by name; FF_CONSTRAINTS_REJECT=1 restores the blanket rejection.

What's new in 0.6.0 — Selection: solve the choice, then plan to it. Plan forensics (the write-up) proved the remaining quality gap on preference domains was a selection problem, not a search problem — so ferroplan now solves the preference-subset choice exactly (selection.rs: mutex-variable end states, branch-and-bound, an admissible bound that can prove optimality) and plans to it as a target, and keeps init-satisfied "trap" preferences visible to the guidance. Results on pure defaults vs SGPlan5, the IPC-5 winner: storage becomes an 8/8 domain sweep (totals 234 vs 547), tpp p06 an exact tie, rovers' totals lead widens to 4862 vs 5632, and the suite tally reaches 19W/16T/13L (scoreboard) — three domains led under both quality conventions, deterministic at any thread count, every default change with a restore hatch, every dead end recorded (0.6 roadmap).

What's new in 0.5.0 — closing on first. On the vendored IPC-5 simple-preferences suite, pure defaults (one configuration, no env vars, deterministic at any thread count) now lead SGPlan5 — the IPC-5 winner — under BOTH quality conventions on three of the six domains: openstacks (wins p04–p08), storage (wins p01–p07), and rovers (wins p04/p06/p07/p08, exact ties p01/p05) — with trucks ahead on the domain total and a suite-wide instance tally of 19W/14T/15L (scoreboard). Under the hood: the ESPC penalty loop graduated to a deterministically budgeted default, both B&B loops gained anytime in-sweep tightening + a diversified restart ladder (which broke the storage/tpp plateaus), and folded numeric metrics route through the exact-closure optimizer (the rovers flip). Every default change keeps a restore hatch (tuning reference); negative results are recorded, not hidden (two seeding levers measured neutral, shipped opt-in). See the CHANGELOG and the executed 0.5 roadmap.

What's new in 0.4.0 — the PDDL3 preference-metric release, measured against the official IPC-5 winner on the vendored simple-preferences suite (scoreboard): ferroplan now leads SGPlan5 on two of the six domains — openstacks (opt-in FF_ESPC=1 partitioned penalty loop: 19/23/17/16/21/22/66/87 vs 13/16/12/26/36/33/67/123) and storage (plain defaults: 3/5/6/9/46/145/200/263 vs 5/8/14/17/87/…, up from 2/8 coverage) — is ahead on the trucks total, and ties SGPlan5 on every tpp and pathways p01–p04 instance. Under the hood: an exact-closure metric optimizer (search real states, close the compiled preference bookkeeping with a provably-optimal phase tail), static preference simplification (storage's 62k-instance quadratic forall collapses ~97% at compile), barrier-free full-DNF guidance, and a budget-escalating B&B whose deterministic eval budget (FF_PREF_EVAL_BUDGET) is a real quality dial. Every change has a restore hatch. See the CHANGELOG for the full breakdown, including 0.3.0's temporal solver depth (65 → 73/75 corpus, default goal-relevance pruning, escalation ladder, Session API), the animator's transport bar and Gantt view, and the move to Bevy 0.19.

Features

• EHC + best-first — enforced hill-climbing with helpful actions (the FF speed default), falling back to weighted best-first when it stalls. Selectable per solve (--search auto|ehc|best-first|…).
• FF heuristic — delete-relaxation relaxed-plan heuristic over a data-oriented task, deferred evaluation, tunable g/h weights.
• Data parallelism — parallel grounding and parallel batch heuristic evaluation (std::thread); the plan found is identical for any thread count.
• PDDL coverage — STRIPS, typing, negative/disjunctive preconditions, numeric fluents (Metric-FF style), ADL (conditional effects, forall/exists, equality), and derived predicates / axioms (:derived, static/stratified — closed into the initial state via a datalog fixpoint).
• PDDL3 preferences — soft goal preferences (incl. forall-quantified and precondition preferences) compiled away, with anytime branch-and-bound metric optimization. (Exact-optimal on small/medium instances; best-found, flagged, on the largest — see Limitations.)
• PDDL2.1 temporal — :durative-actions with at start/over all/at end conditions & effects, constant or parameter-dependent durations, and required concurrency, via a decision-epoch forward search; output in the IPC temporal plan format (t: (action) [dur]) with a makespan.
• SGPlan-style partitioning — an optional partition-and-resolve mode.
• Robust — a published library shouldn't crash: malformed/pathological PDDL (incl. deeply-nested forms) returns a typed error, never a panic.
• Structured output — the library returns typed, serde-serializable results; the CLI emits classic FF text or JSON.

GUI

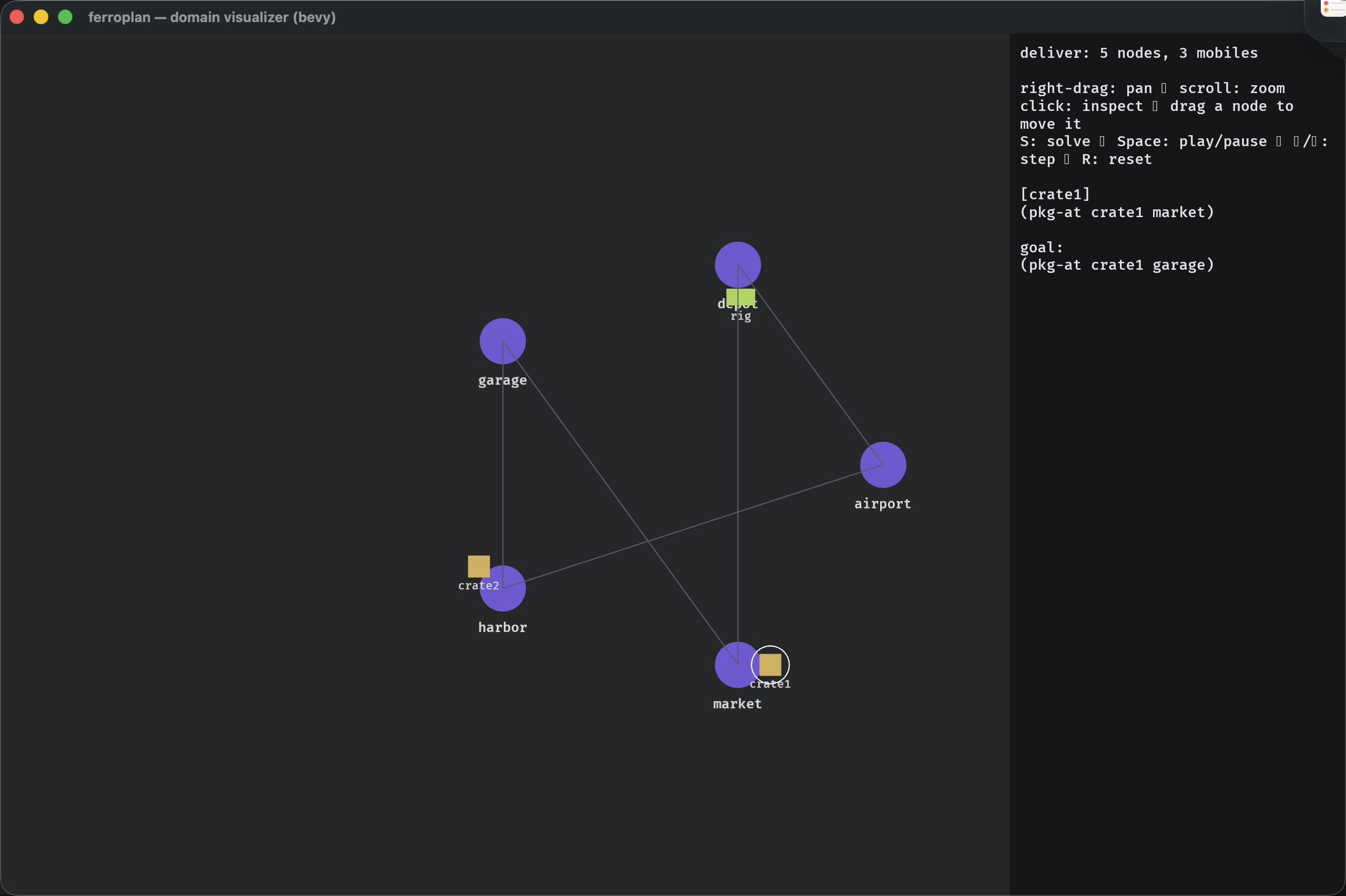

ferroplan-bevy is a Bevy app that visualizes a domain+problem as a typed graph, animates the plan, and edits both problems and domains in a Blockly-style block editor (cargo run -p ferroplan-bevy).

Install / build

# install the `ff` CLI from crates.io
cargo install ferroplan-cli    # puts `ff` on your PATH

# …or build from a clone
cargo build --release          # produces target/release/ff
cargo run --release --bin ff -- -o domain.pddl -f problem.pddl

As a library dependency: cargo add ferroplan (see Library below).

CLI (ff)

# drop-in: classic Metric-FF text output
ff -o domain.pddl -f problem.pddl

# structured JSON solution
ff -o domain.pddl -f problem.pddl --json

# pick a mode / search strategy
ff -o domain.pddl -f problem.pddl --mode partition
ff -o domain.pddl -f problem.pddl --search best-first --weight-h 3

# temporal (durative actions) — auto-detected; prints the IPC temporal plan
ff -o temporal-domain.pddl -f problem.pddl --mode temporal

# decompose a too-big temporal goal into ordered, individually-solved contracts
# (the "LLM authors, planner decomposes" bet, made inspectable — text or --json)
ff -o temporal-domain.pddl -f problem.pddl --mode temporal --decompose

# self-contained JSON job: {"domain": "...", "problem": "...", "options": {...}}
ff --json-request job.json

Run ff --help for all flags (--search, --weight-g/--weight-h, --max-evaluated, --satisfice, --threads, …).

Library

use ferroplan::{solve, Options};

let domain  = std::fs::read_to_string("domain.pddl")?;
let problem = std::fs::read_to_string("problem.pddl")?;

// Syntax-check before solving (no grounding/solving) — fast authoring feedback.
let report = ferroplan::parse(&domain);
assert!(report.ok, "{:?}", report.error);

let solution = ferroplan::solve(&domain, &problem, &Options::default())?;
if let Some(plan) = solution.plan {
    for step in &plan.steps {
        println!("{} {}", step.action, step.args.join(" "));
    }
    println!("metric: {:?}", plan.metric);
}
# Ok::<(), ferroplan::SolveError>(())

The public, serde-serializable surface: solve (plan a domain+problem), decompose (split a too-big temporal goal into validated contracts), parse (syntax-check + summarize PDDL without solving), Session (ground once, replan many — for a live loop that re-solves the same world every tick), and plan::validate_plan (independently check a plan). See examples/ for solve, parse, json_api, and replan (Session vs. re-solving from scratch, with timings).

Configuration

Every solver knob lives on one Options struct (library-first, serde- serializable). The CLI flags and JSON job options map to the same fields; omitted JSON fields fall back to the defaults shown.

ferroplan::solve(&domain, &problem, &ferroplan::Options {
    mode:            Mode::Auto,        // auto | ff | partition | pddl3 | temporal
    search:          Search::Auto,      // auto | ehc | best-first | ehc-then-best-first
    helpful_actions: true,              // helpful-action pruning (EHC)
    weight_g:        1.0,               // best-first path-length weight
    weight_h:        5.0,               // best-first heuristic weight  (1·g + 5·h)
    threads:         0,                 // 0 = auto
    max_evaluated:   None,              // search node cap
    optimize:        true,              // PDDL3: optimize metric vs. satisfice
    ..Default::default()                // every field is optional
})?;

CLI equivalents: --mode, --search, --no-helpful, --weight-g/--weight-h, --max-evaluated, --satisfice, --threads. Via JSON: {"domain": "...", "problem": "...", "options": {"search": "best-first"}}.

Workspace layout

Examples

examples/ collects worked domains that exercise the full feature set — see the examples index for a feature-by-feature map and a suggested reading order. Highlights:

• rpg — the clean intro: durative actions with renewable (workers) and consumable resources, gather → craft → build.
• rpg-world — a ~120-action crafting/economy domain (durative actions, numeric resources, renewable capacities, a reachability axiom) with a corpus of validated contracts, a flavor-×-scale suite/, an adversarial hard/ batch, and an industrial-city showcase that runs a whole metal/stone/wood industry as a pipeline of contracts.
• cabin — deep numeric build plus a durative "crew" twin (makespan vs. crew size, skill-gated scheduling).
• reachability — the worked derived-axiom (:derived) example: static transitive-closure reachability.
• village — a full-ADL stress test (when, forall+when, or, negation) over durative + numeric state.
• villagers — a data-driven recipe planner with numeric PDDL3 metric optimization; the "embed in a game" model.
• logistics — transshipment: per-location goods, trucks with capacity, a train line.
• jobshop — scheduling with machine-exclusion (scales to 100 concurrent jobs).
• BORDERS.md — a measured map of where one-shot planning solves vs. where a goal must be decomposed into contracts. The decompose API / ff --decompose acts on that border: it splits a too-big temporal goal into ordered, individually-solved contracts and stitches them into one validated plan (e.g. hard/order-8 → 8 named contracts), falling back to a monolithic solve when a goal can't be split.

Benchmarks

Classical and ADL coverage/speed are measured against the C Metric-FF; the IPC-5 preference quality is measured against SGPlan5 (the IPC-5 winner), over a subset of the IPC contest suites. Headline (native Metric-FF, EHC default):

The IPC-5 preference scoreboard (vs SGPlan5): benchmarks/ipc5-scoreboard.md; classical/numeric detail: benchmarks/results.md (and the project site). The oracles are not bundled (GPL / non-commercial licences) — reproduce per benchmarks/COMPARING.md.

Profiling & perf tracking: PROFILING.md — a deterministic metrics harness (benchmarks/perf.py run/compare against a committed baseline, so improvement/regression is measurable across machines) plus the samply / flamegraph / criterion-baseline workflow for finding and tracking hotspots.

Limitations

• Numeric trails Metric-FF: EHC's helpful-action lookahead stalls on some numeric domains and falls back to (complete, slower) best-first.
• IPC-5 preferences: compiled away, then optimized by an exact-closure metric optimizer with anytime sweeps, a diversified restart ladder, and the deterministically-budgeted ESPC penalty loop — all defaults. Coverage is full (48/48) on the vendored simple-preferences suite and ferroplan leads SGPlan5 under both quality conventions on three of the six domains (openstacks, storage, rovers), with trucks ahead on totals — see the scoreboard. The tpp/pathways p05–p08 tails still trail (best-found, flagged not proven optimal, measured direction-bound); the design record for the remaining work is in docs/espc-preferences-spec.md and docs/roadmap-0.5.md.
• PDDL3 trajectory constraints ((:constraints ...)): the six untimed modal operators (always, sometime, at-most-once, sometime-after, sometime-before, at end) are enforced on the classical path — compiled into monitor automata and cross-checked by the independent verifier. Hard constraints become goal conjuncts; soft (preference name ...) constraints are priced through the PDDL3 metric machinery like native goal preferences (the IPC-5 qualitative-preferences suite is vendored and scored — see benchmarks/ipc5-qualitative-scoreboard.md). The timed operators (within, hold-during, hold-after, always-within) and the temporal path are still rejected by name rather than silently dropped (FF_CONSTRAINTS_REJECT=1 restores the pre-0.7 blanket rejection).
• Temporal: durative actions with constant or parameter-dependent durations and required concurrency are supported, and plans are VAL-validated on real IPC temporal domains (44/45 produced plans valid — see benchmarks/temporal-results.md). Coverage is currently search-limited (the decision-epoch search times out on large instances). Duration inequalities ((>= ?duration L) / (<= ?duration U) / and ranges) are supported — the search commits to the shortest feasible duration — as are timed initial literals ((at <time> <literal>) in :init). Continuous (#t) effects are not yet supported.
• Derived predicates (:derived): static/stratified axioms are supported (closed into the initial state); dynamic derived predicates (bodies over changing facts) are not yet.

Acknowledgments

This project is built in deep respect for the planners that came before it.

SGPlan (SGPlan5 / SGPlan6), by Chih-Wei Hsu and Benjamin W. Wah at the University of Illinois, has been the standard to beat in this corner of automated planning for the better part of two decades — the IPC-winning system whose constraint-partitioning and extended-saddle-point penalty-coordination ideas still define the state of the art for satisficing planning with preferences and with temporal/resource constraints. I've followed that line of research for many years, and to build something that even comes close to it on a slice of the benchmarks is, genuinely, an honor. Enormous credit to that team for the depth, rigor, and sheer durability of the work — ferroplan is in no small part an attempt to learn from it, in Rust.

Equal thanks to Jörg Hoffmann's FF / Metric-FF, whose relaxed-plan heuristic and enforced hill-climbing are the backbone of this engine; to the IPC organizers and domain authors whose benchmarks make progress measurable; and to Derek Long and Maria Fox's VAL, used here to independently validate the temporal plans.

License

Dual-licensed under either of MIT or Apache-2.0, at your option.
