§Polyfit

§Because you don’t need to be able to build a powerdrill to use one safely

Statistics is hard, and linear regression is made entirely out of footguns; Curve fitting might be simple in theory, but there sure is a LOT of theory.

This library is designed for developers who need to make use of the plotting or predictive powers of a curve fit without needing to worry about Huber loss, D’Agostino, or what on earth a kurtosis is

I provide a set a tools designed to help you:

Select the right kind (basis) of polynomial for your data
Automatically determine the optimal degree of the polynomial
Make predictions, detect outliers, and get confidence values based on it
Write easy to understand tests to confirm function
- Tests even plot the data and functions for you on failure! (plotting feature)

I support:

Functions and fits generic over floating point type and 11 choices of polynomial basis
- Monomial
- Orthogonal bases: Chebyshev (1st, 2nd, and 3rd forms), Legendre, Hermite (Physicists’ and Probabilists’), Laguerre
- Fourier
- Logarithmic
Human-readable display of polynomial euations
Symbolic calculus (differentiation, integration, critical points) for most bases
Orthogonal basis specific tools (smoothness, coefficient energies, spectral energy truncation, orthogonal projection)
A suite of statistical tests to validate fit quality (test module).
- Tests include r², residual normality, homoscedasticity, autocorrelation, and more
- All tests generate plots on failure if the plotting feature is enabled
Data transformation tools (transforms module) to add noise, scale, shift, and normalize data
A library of statistical tools (statistics module) to help you understand your data
Comprehensive engineering-focused documentation with examples and explanations, so you don’t need a statistics degree to understand it

Crate features:

plotting - (default: NO) Enables plotting support using plotters
- All assert_* macros in the testing library will generate plots on failure
- The plot! macro is available to generate plots of fits and polynomials
- The plotting::Plot type is available for more customized plots
transforms - (default: YES) Enables data transformation tools
- The transforms module is available, which includes tools to add noise, scale, shift, and normalize data
- The transforms::ApplyNoise trait is available to add noise to data (Gaussian, Poisson, Impulse, Correlated, Salt & Pepper)
- The transforms::ApplyScale trait is available to scale data (Shift, Linear, Quadratic, Cubic)
- The transforms::ApplyNormalization trait is available to normalize data (Domain, Clip, Mean, zscore)
parallel - (default: NO) Enables parallel processing using rayon
- CurveFit::new_auto uses parallel processing to speed up fitting when this feature is enabled
- All curve fits can use a faster solver for large enough datasets when this feature is enabled

The simplest use-case is to find a mathematical function to help approximate a set of data:


//
// Load data from a file
let data = include_str!("../examples/sample_data.json");
let data: Vec<(f64, f64)> = serde_json::from_str(data).unwrap();

//
// Now we can create a curve fit to this data
//
// `ChebyshevFit` is a type alias for `CurveFit<ChebyshevBasis>`
// `ChebyshevBasis` is a robust choice for many types of data; It's more numerically stable and performs better at higher degrees
// It is one of several bases available, each with their own strengths and weaknesses. `basis_select!` can help you choose the best one for your data
let fit = ChebyshevFit::new_auto(
    &data,                 // The data to fit to
    DegreeBound::Relaxed,  // How picky we are about the degree of the polynomial (See [`statistics::DegreeBound`])
    &Aic                   // The method used to score the fit quality (See [`crate::score`])
).expect("Failed to create fit");

//
// Of course if we don't test our code, how do we know it works - please don't assume I remembered all the edge cases
// If these assertion fail, a plot will be generated showing you exactly what went wrong!
//

// Here we test using r_squared, which is a measure of how well the curve explains how wiggly the data is
// An r_squared of 1.0 is a perfect fit
assert_r_squared!(fit);

// Here we check that the residuals (the difference between the data and the fit) are normally distributed
// Think of it like making sure the errors are random, not based on some undiscovered pattern
assert_residuals_normal!(fit);

§Features

§Built for developers, not statisticians

The crate is designed to be easy to use for developers who need to make use of curve fitting without needing to understand all the underlying statistics.

Sensible defaults are provided for all parameters
The most common use-cases are covered by simple functions and macros
All documentation includes examples, explanations of parameters, and assumes zero prior knowledge of statistics
API is designed to guide towards best practices, while being flexible enough to allow advanced users to customize behavior as needed
Includes a suite of testing tools to bridge the gap between statistical rigour and engineering pragmatism

§Hot-swappable Polynomial Basis

A polynomial basis is a sum of solving a function, called a basis function, multiplied by a coefficient:

y(x) = c1*b1(x) + c2*b2(x) + ... + cn*bn(x)

The basis determines what the basis functions b1, b2, …, bn are. The choice of basis has massive implications for the shape of the curve, the numerical stability of the fit, and how well it fits!

The crate includes a variety of polynomial bases to choose from, each with their own strengths and weaknesses. Polynomial and CurveFit are generic over the basis, so you can easily swap them out to see which works best for your data:

Monomial - Simple and intuitive, but can be numerically unstable for high degrees or wide x-ranges
Chebyshev - More numerically stable than monomials, and can provide better fits for certain types of data
Legendre - Orthogonal polynomials that can provide good fits for certain types of data
Hermite (Physicists’ and Probabilists’) - Useful for data that is normally distributed
Laguerre - Useful for data that is exponentially distributed
Fourier - Useful for periodic data

I also include basis_select!, a macro that will help you choose the best basis for your data.

It does an automatic fit for each basis I support, and scores them using the method of your choice.
It will show and plot out the best 3
Use it a few times will real data and see which basis seems to consistently come out on top for your use-case

This table gives hints at which basis to choose based on the characteristics of your data:

Basis Name	Handles Curves Well	Repeating Patterns	Extremes / Outliers	Growth/Decay	Best Data Shape / Domain
Monomial	Poor	No	No	Poor	Any simple trend
Chebyshev	Good	No	No	Poor	Smooth curves, bounded
Legendre	Fair	No	No	Poor	Smooth curves, bounded
Hermite	Good	No	Yes	Yes	Bell-shaped, any range
Laguerre	Good	No	Yes	Yes	Decaying, positive-only
Fourier	Fair	Yes	No	Poor	Periodic signals
Logarithmic	Fair	No	Yes	Yes	Logarithmic growth

The orthogonal bases (Chebyshev, Legendre, Hermite, Laguerre) are generally more numerically stable than monomials, and can often provide better fits for higher-degree polynomials.

They also unlock a few analytical tools that are not available other bases:

CurveFit::smoothness - A measure of how “wiggly” the curve is; useful for regularization and model selection
CurveFit::coefficient_energies - A measure of how much each basis function contributes to the overall curve; useful for understanding the shape of the curve
Polynomial::spectral_energy_filter - A way to de-noise the curve by removing high-frequency components the don’t contribute enough; useful for smoothing noisy data
Polynomial::project_orthogonal - A way to project any function onto an orthogonal basis
- I like to use this to convert Fourier fits into Chebyshev fits for noisy periodic data (see examples/whats_an_orthogonal.rs)

§Calculus Support

Most built-in bases support differentiation and integration in some way, including built-in methods for definite integrals, and finding critical points.

Many basis options implement calculus directly
A few bases implement IntoMonomialBasis, which allows them to be converted into a monomial basis for calculus operations
For logarithmic series, use Polynomial::project, which can be a good way to approximate over certain ranges

Basis	Exact Root Finding	Derivative	Integral (Indefinite)	As Monomial
Monomial	Yes	Yes	Yes	Yes
Chebyshev (1st form)	Yes	Yes	No	Yes
Chebyshev (2nd/3rd)	Yes	Yes	Yes	No
Legendre	No	Yes	No	Yes
Laguerre	No	Yes	No	Yes
Hermite	No	Yes	No	Yes
Fourier (sin/cos)	No	Yes	Yes	No
Exponential (e^{λx})	No	Yes	Yes	No
Logarithmic (ln^n x)	No	No	No	No

§Testing Library

The crate includes a set of macros designed to make it easy to write unit tests to validate fit quality. There are a variety of assertions available, from simple r² checks to ensuring that residuals are normally distributed.

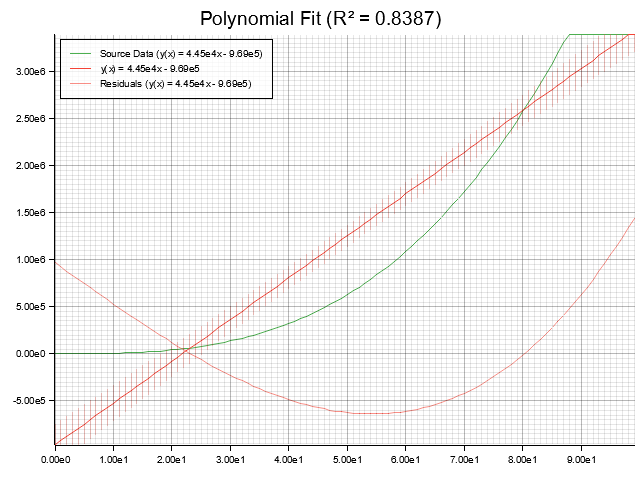

If the plotting feature is enabled, any failed assertion will generate a plot showing you exactly what went wrong.

See test for more details on all included tests

§Plotting

If the plotting feature is enabled, you can use the plot! macro to generate plots of your fits and polynomials.

Plots are saved as PNG files
Fits include source data, confidence bands, and residuals
If enabled, failed assertions in the testing library will automatically generate plots showing what went wrong

See plotting for more details

§Transforms

If the transforms feature is enabled, you can use the tools in the transforms module to manipulate your data.

Add noise for testing purposes
Scale, shift, or normalize data

§Human Readable Display

The crate includes a set of tools to help you display polynomials in a human readable format

See the display module for more details
All built-in basis options implement PolynomialDisplay to give you a nicely formatted equation like:
y(x) = 1.81x³ + 26.87x² - 1.00e3x + 9.03e3

§Performance

The crate is designed to be fast and efficient, and includes benchmarks to help test that performance is linear with respect to the number of data points and polynomial degree.

A 3rd degree fit (1,000 points, Chebyshev basis) takes about 23µs in my benchmarks. Going up to 100,000 goes to about 4ms, which is roughly 100x the time for 1,000 points, as expected.

With parallelization turned on, a 100 million point fit for a 3rd degree Chebyshev took about 1.18s on my machine (8 cores @ 2.2GHz, 32GB RAM).

The same linear scaling can be seen with polynomial degree (1,000 points, Chebyshev basis); 11µs for degree 1, up to 44µs for degree 5.

Auto-fit is also reasonably fast; 1,000 points, Chebyshev basis, and 9 candidate degrees takes about 330µs, or 600µs with parallelization disabled.

There are also performance differences between bases; 1 - Chebyshev is the fastest, due to the stability of the matrix and the recurrence I use (~24µs for degree 3, 1,000 points) 2 - Hermite, Legendre, and Laguerre are fairly close to that (~30µs for degree 3, 1,000 points) 3 - Monomials perform worse than more stable bases (~53µs for degree 3, 1,000 points) 4 - Fourier and Logarithmic are around the same due to the trigonometric/logarithmic calculations (~57µs for degree 3, 1,000 points)

The benchmarks actually use my library to test that the scaling is linear - which I think is a pretty cool use-case:

let linear_fit = MonomialFit::new(&data, 1)?; // Create a linear fit (degree=1)
polyfit::assert_r_squared!(linear_fit);       // Assert that the linear fit explains the data well (r² > 0.9)

// If the assertion fails, a plot will be generated showing you exactly what went wrong

Raw benchmark results:

Benchmarking fit vs n (Chebyshev, Degree=3)
fit_vs_n/n=100                  [3.3817 µs 3.4070 µs 3.4363 µs]
fit_vs_n/n=1_000                [23.791 µs 23.926 µs 24.098 µs]
fit_vs_n/n=10_000               [302.99 µs 304.40 µs 306.01 µs]
fit_vs_n/n=100_000              [4.5086 ms 4.5224 ms 4.5376 ms]
fit_vs_n/n=1_000_000            [12.471 ms 12.592 ms 12.725 ms]
fit_vs_n/n=10_000_000           [115.49 ms 116.76 ms 118.07 ms]
fit_vs_n/n=100_000_000          [1.1768 s 1.1838 s 1.1908 s]

Benchmarking fit vs degree (Chebyshev, n=1000)
fit_vs_degree/Degree=1          [11.587 µs 11.691 µs 11.802 µs]
fit_vs_degree/Degree=2          [18.109 µs 18.306 µs 18.505 µs]
fit_vs_degree/Degree=3          [24.672 µs 24.954 µs 25.269 µs]
fit_vs_degree/Degree=4          [33.074 µs 33.206 µs 33.368 µs]
fit_vs_degree/Degree=5          [44.399 µs 44.887 µs 45.401 µs]
fit_vs_degree/Degree=10         [126.07 µs 127.26 µs 128.62 µs]
fit_vs_degree/Degree=20         [420.20 µs 423.44 µs 426.93 µs]

Benchmarking fit vs basis (Degree=3, n=1000)
fit_vs_basis/Monomial           [53.513 µs 53.980 µs 54.450 µs]
fit_vs_basis/Chebyshev          [24.307 µs 24.504 µs 24.710 µs]
fit_vs_basis/Legendre           [27.577 µs 80.104 µs 80.714 µs]
fit_vs_basis/Hermite            [30.496 µs 30.872 µs 31.321 µs]
fit_vs_basis/Laguerre           [31.146 µs 31.428 µs 31.734 µs]
fit_vs_basis/Fourier            [56.421 µs 56.985 µs 57.612 µs]

Benchmarking auto fit vs basis (n=1000, Candidates=9)
auto_fit_vs_basis/Monomial      [497.33 µs 500.27 µs 503.30 µs]
auto_fit_vs_basis/Chebyshev     [327.75 µs 329.67 µs 331.76 µs]
auto_fit_vs_basis/Legendre      [1.6993 ms 1.7061 ms 1.7128 ms]
auto_fit_vs_basis/Hermite       [337.65 µs 339.90 µs 342.44 µs]
auto_fit_vs_basis/Laguerre      [428.36 µs 431.26 µs 434.09 µs]
auto_fit_vs_basis/Fourier       [710.46 µs 713.07 µs 715.85 µs]
auto_fit_vs_basis/Logarithmic   [525.36 µs 528.21 µs 531.10 µs]

For transparency I ran the same benchmarks in numpy (benches/numpy_bench.py):

They use 1,000points and Chebyshev basis for comparison. n tests are with degree 3

fit_vs_n/n=100         [465.15µs]
fit_vs_n/n=1000        [204.68µs]
fit_vs_n/n=10000       [953.67µs]
fit_vs_n/n=100000      [9847.16µs]

fit_vs_degree/degree=1 [122.67µs]
fit_vs_degree/degree=2 [158.31µs]
fit_vs_degree/degree=3 [198.84µs]
fit_vs_degree/degree=4 [243.07µs]
fit_vs_degree/degree=5 [510.57µs]

§More Examples

Oh no! I have some data but I need to try and predict some other value!


//
// I don't have any real data, so I'm still going to make some up!
// `function!` is a macro that makes it easy to define polynomials for testing
// `apply_poisson_noise` is part of the `transforms` module, which provides a set of tools for manipulating data
polyfit::function!(f(x) = 2 x^2 + 3 x - 5);
let synthetic_data = f.solve_range(0.0..=100.0, 1.0).apply_poisson_noise(Strength::Absolute(0.1), None);

//
// Now we can create a curve fit to this data
// Monomials don't like high degrees, so we will use a more conservative degree bound
// `Monomials` are the simplest polynomial basis, and the one most people are familiar with, it looks like `1x^2 + 2x + 3`
let fit = MonomialFit::new_auto(&synthetic_data, DegreeBound::Conservative, &Aic).expect("Failed to create fit");

//
// Now we can make some predictions!
//

let bad_and_silly_prediction = fit.y(150.0); // This is outside the range of the data, so it is probably nonsense
                                             // Fits are usually only valid within the range of the data they were created from
                                             // Violating that is called extrapolation, which we generally want to avoid
                                             // This will return an error!

let bad_prediction_probably = fit.as_polynomial().y(150.0); // This is outside the range of the data, but you asked for it specifically
                                                            // Unlike a CurveFit, a Polynomial is just a mathematical function - no seatbelts
                                                            // This will return a value, but it is probably nonsense

let good_prediction = fit.y(50.0); // This is within the range of the data, so it is probably reasonable
                                   // This will return Ok(value)

//
// Maybe we need to make sure our predictions are good enough
// A covariance matrix sounds terrifying. Because it is.
// Which is why I do it for you - covariance matrices measure uncertainty about your fit
// They can be used to calculate confidence intervals for predictions
// They can also be used to find outliers in your data
let covariance = fit.covariance().expect("Failed to calculate covariance");
let confidence_band = covariance.confidence_band(
    50.0,                          // Confidence band for x=50
    Confidence::P95,               // Find the range where we expect 95% of points to fall within
    Some(Tolerance::Variance(0.1)) // Tolerate some extra noise in the data (10% of variance of the data, in this case)
).unwrap(); // 95% confidence band
println!("I am 95% confident that the true value at x=50.0 is between {} and {}", confidence_band.min(), confidence_band.max());

Oh dear! I sure do wish I could find which pieces of data are outliers!


//
// I still don't have any real data, so I'm going to make some up! Again!
polyfit::function!(f(x) = 2 x^2 + 3 x - 5);
let synthetic_data = f.solve_range(0.0..=100.0, 1.0).apply_poisson_noise(Strength::Absolute(0.1), None);

//
// Let's add some outliers
// Salt and pepper noise is a simple way to do this; She's good n' spiky
// We will get nice big jumps of +/- 50 in 5% of the data points
let synthetic_data_with_outliers = synthetic_data.apply_salt_pepper_noise(0.05, Strength::Absolute(-50.0), Strength::Absolute(50.0), None);

//
// Now we can create a curve fit to this data, like before
let fit = MonomialFit::new_auto(&synthetic_data_with_outliers, DegreeBound::Conservative, &Aic).expect("Failed to create fit");

//
// Now we can find the outliers!
// These are the points that fall outside the 95% confidence interval
// This means that they are outside the range where we expect 95% of the data to fall
// The `Some(0.1)` means we tolerate some noise in the data, so we don't flag points that are just a little bit off
// The noise tolerance is a fraction of the variance of the data (10% in this case)
//
// If we had a sensor that specified a tolerance of ±5 units, we could use `Some(Tolerance::Absolute(5.0))` instead
// If we had a sensor that specified a tolerance of 10% of the reading, we could use `Some(Tolerance::Measurement(0.1))` instead
let outliers = fit.covariance().unwrap().outliers(Confidence::P95, Some(Tolerance::Variance(0.1))).unwrap();

Re-exports§

pub use nalgebra;

Modules§

basis: Polynomial basis functions for curve fitting
display: Utilities for displaying and formatting polynomials
error: Error types for polynomial curve fitting
plottingplotting: Debug utilities for plotting fits and curves
score: Scoring methods for model selection.
statistics: Functions and tools for evaluating polynomial fits and scoring models
test: A test-suite designed to bridge the gap between statistical rigour and engineering pragmatism.
transformstransforms: Utilities for adding transformations to data
value: Numeric types and iteration utilities for polynomial curves.

Macros§

assert_adjusted_r_squared: Macro for asserting that a fitted curve meets a minimum R² threshold in tests. This is a measure of how well the curve explains how wiggly the data is.
assert_all_close: Asserts that two slices of floating-point values are approximately equal element-wise within a small tolerance (epsilon).
assert_close: Asserts that two floating-point values are approximately equal within a small tolerance (epsilon).
assert_fits: Asserts that the fitted curve is a good representation of a canonical curve. Compares the fit’s r² value against a threshold to ensure it closely follows the expected curve.
assert_is_derivative: Asserts that one polynomial is the derivative of another over a specified domain.
assert_max_residual: Asserts that at least a certain proportion of residuals (the differences between the observed and predicted values) of a fit are below a certain threshold.
assert_monotone: Asserts that the derivative of a fitted curve does not change sign over its x-range, indicating monotonicity. This means the function always increases or always decreases.
assert_r_squared: Macro for asserting that a fitted curve meets a minimum R² threshold in tests. This is a measure of how well the curve explains how wiggly the data is.
assert_residuals_normal: Asserts that the residuals (the differences between the observed and predicted values) of a fit are normally distributed.
assert_robust_r_squared: Macro for asserting that a fitted curve meets a minimum R² threshold in tests. This is a measure of how well the curve explains how wiggly the data is.
assert_y: Asserts that evaluating a polynomial at a given x matches the expected y value within floating-point epsilon tolerance.
basis_select: Automatically fits a dataset against multiple polynomial bases and reports the best fits.
function: Macro to generate a monomial polynomial function.
plot: Plot a CurveFit, Polynomial or set of points to a PNG file.
plot_filename: Generate a filename for a plot: target/plot_output/{file}_line_{line}_{datetime}.png
plot_residuals: Plot the residuals of a CurveFit to a PNG file.

Structs§

CurveFit: Represents a polynomial curve fit for a set of data points.
CurveFitCovariance: Represents the covariance matrix and derived statistics for a curve fit.
FitProperties: A set of diagnostic properties for a curve fit.
Polynomial: Represents a polynomial function in a given basis.

Type Aliases§

ChebyshevFit: Normalized Chebyshev polynomial curve
FourierFit: Fourier series curve
FourierPolynomial: Type alias for a Fourier polynomial (Polynomial<FourierBasis, T>).
LaguerreFit: Laguerre series curve
LegendreFit: Legendre series curve
LogarithmicFit: Logarithmic series curve
MonomialFit: Non-normalized monomial polynomial curve
MonomialPolynomial: A monomial polynomial of the form y = a_n * x^n + ... + a_1 * x + a_0.
PhysicistsHermiteFit: Physicists’ Hermite series curve
ProbabilistsHermiteFit: Probabilists’ Hermite series curve

Crate polyfit

Crate polyfit Copy item path

§Polyfit

§Because you don’t need to be able to build a powerdrill to use one safely

§Features

§Built for developers, not statisticians

§Hot-swappable Polynomial Basis

§Calculus Support

§Testing Library

§Plotting

§Transforms

§Human Readable Display

§Performance

§More Examples

Re-exports§

Modules§

Macros§

Structs§

Type Aliases§

Crate polyfit
