Embedded-graphics-coordinate-transform is a helper library for rotating, mirroring and transposing embedded-graphics displays.

This library provides a single generic implementation of a coordinate transformation wrapper CoordinateTransform. However, in most cases you will want to specifically rotate, mirror or transpose the display, so a number of helper types are provided.

  • MirrorX: Mirror pixels along the x-axis.
  • MirrorY: Mirror pixels along the y-axis.
  • MirrorXY: Mirror pixels along both axes.
  • TransposeXY: Transpose the x and y axes.
  • Rotate0: Rotate the display by 0 degrees.
  • Rotate90: Rotate the display by 90 degrees.
  • Rotate180: Rotate the display by 180 degrees.
  • Rotate270: Rotate the display by 270 degrees.

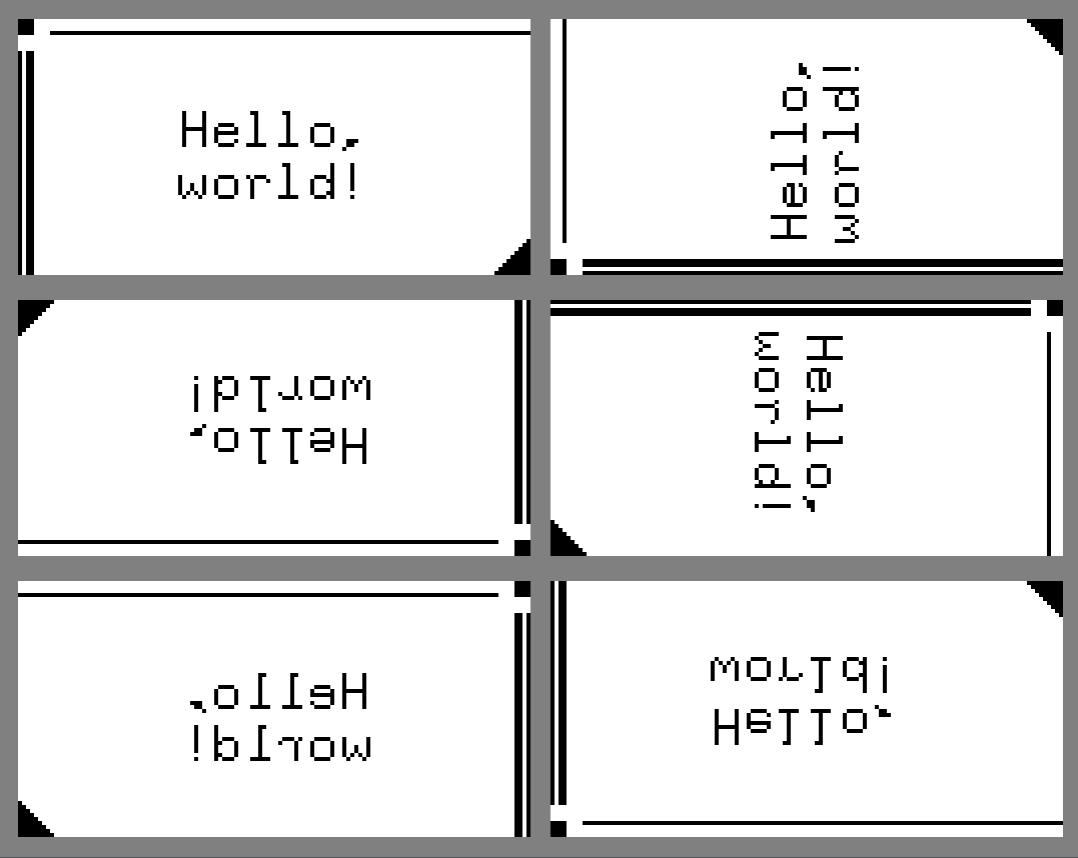

A grid of displays with different coordinate transforms applied.

Structs§

CoordinateTransform
A generic coordinate transform that can both mirror along the x and y axes and transpose.

Type Aliases§

MirrorX
A coordinate transform that mirrors pixels along the x-axis of the display.
MirrorXY
A coordinate transform that mirrors pixels along both the x and y axes of the display.
MirrorY
A coordinate transform that mirrors pixels along the y-axis of the display.
Rotate0
A coordinate transform that rotates the display by 0 degrees.
Rotate90
A coordinate transform that rotates the display by 90 degrees.
Rotate180
A coordinate transform that rotates the display by 180 degrees.
Rotate270
A coordinate transform that rotates the display by 270 degrees.
TransposeXY
A coordinate transform that transposes the x and y axes of the display.
